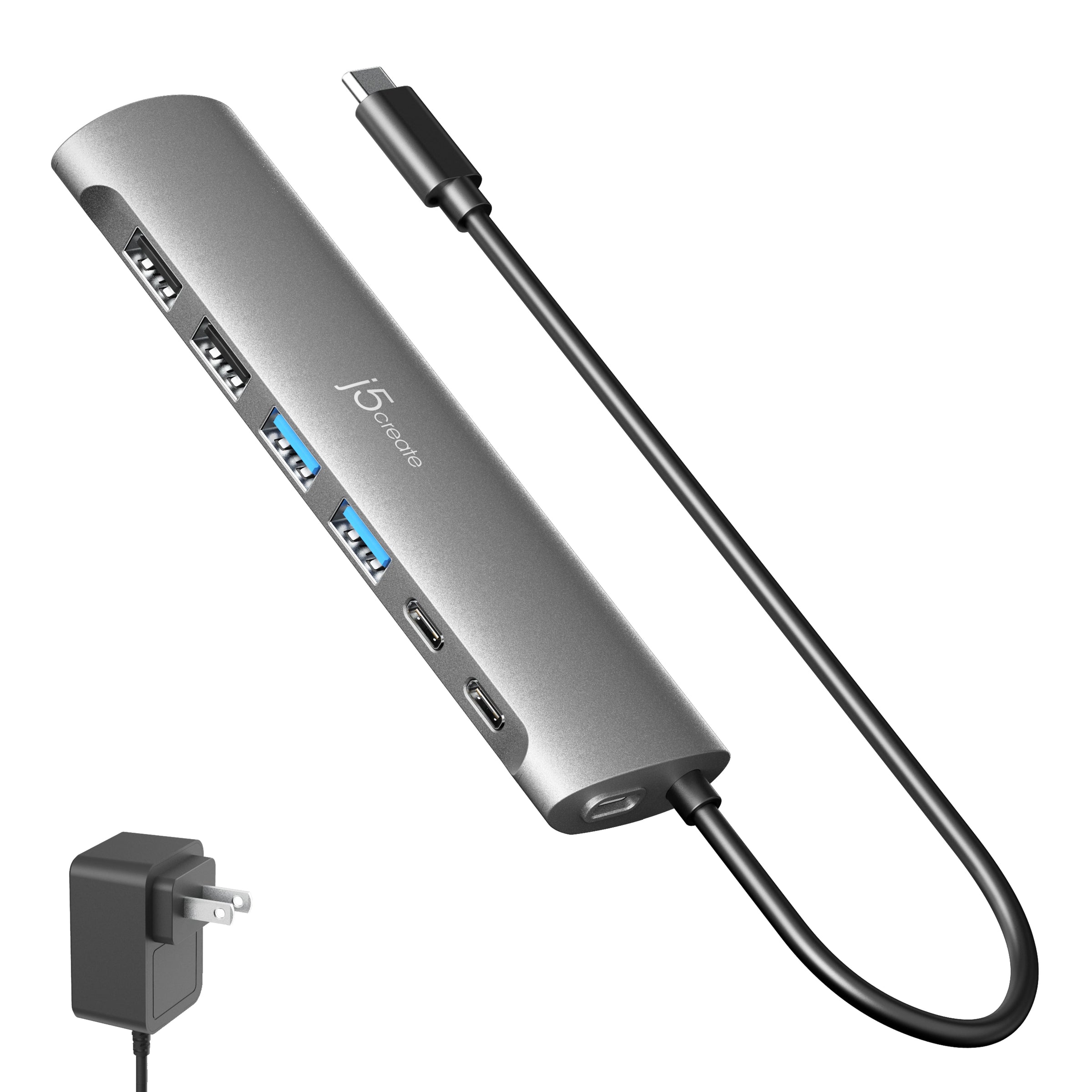

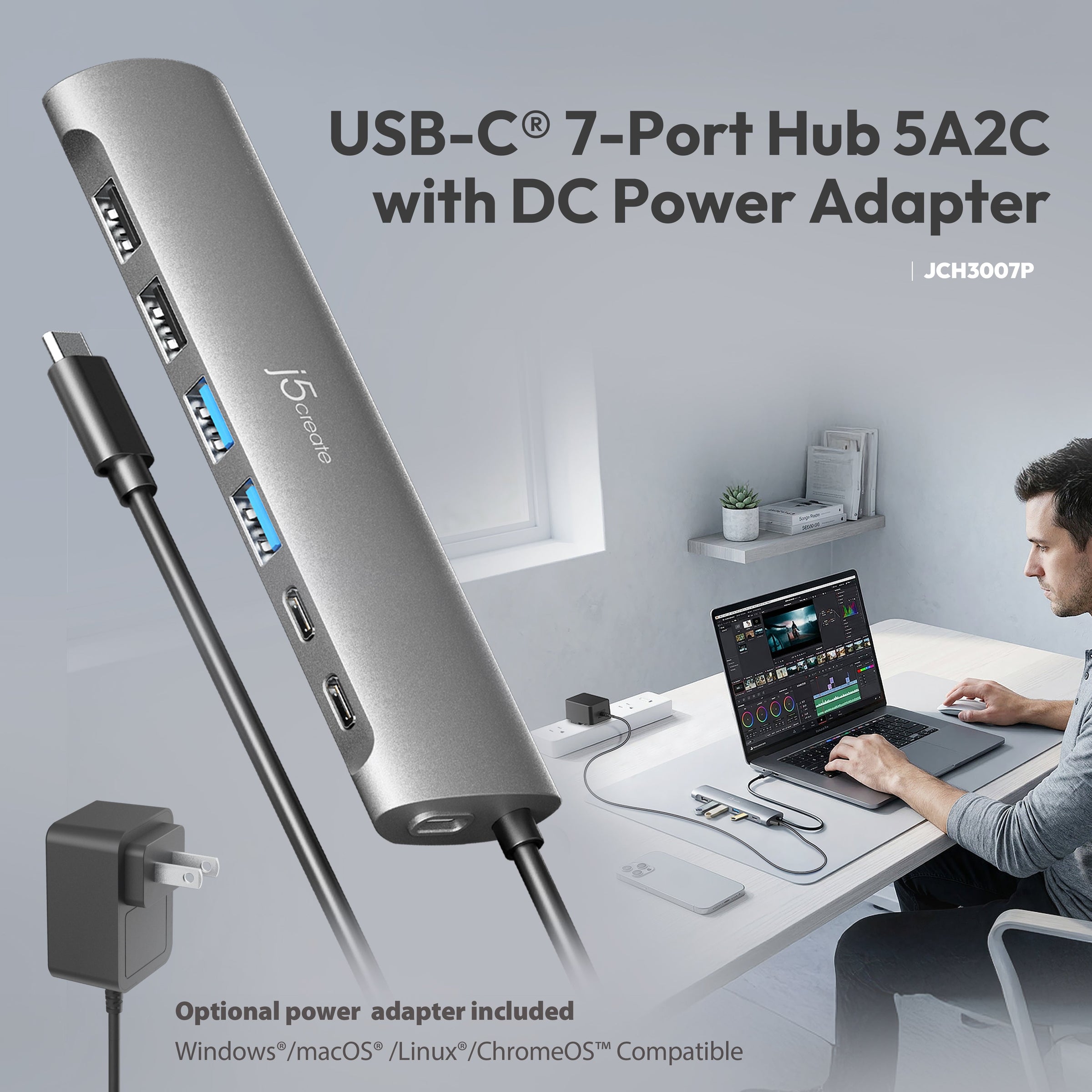

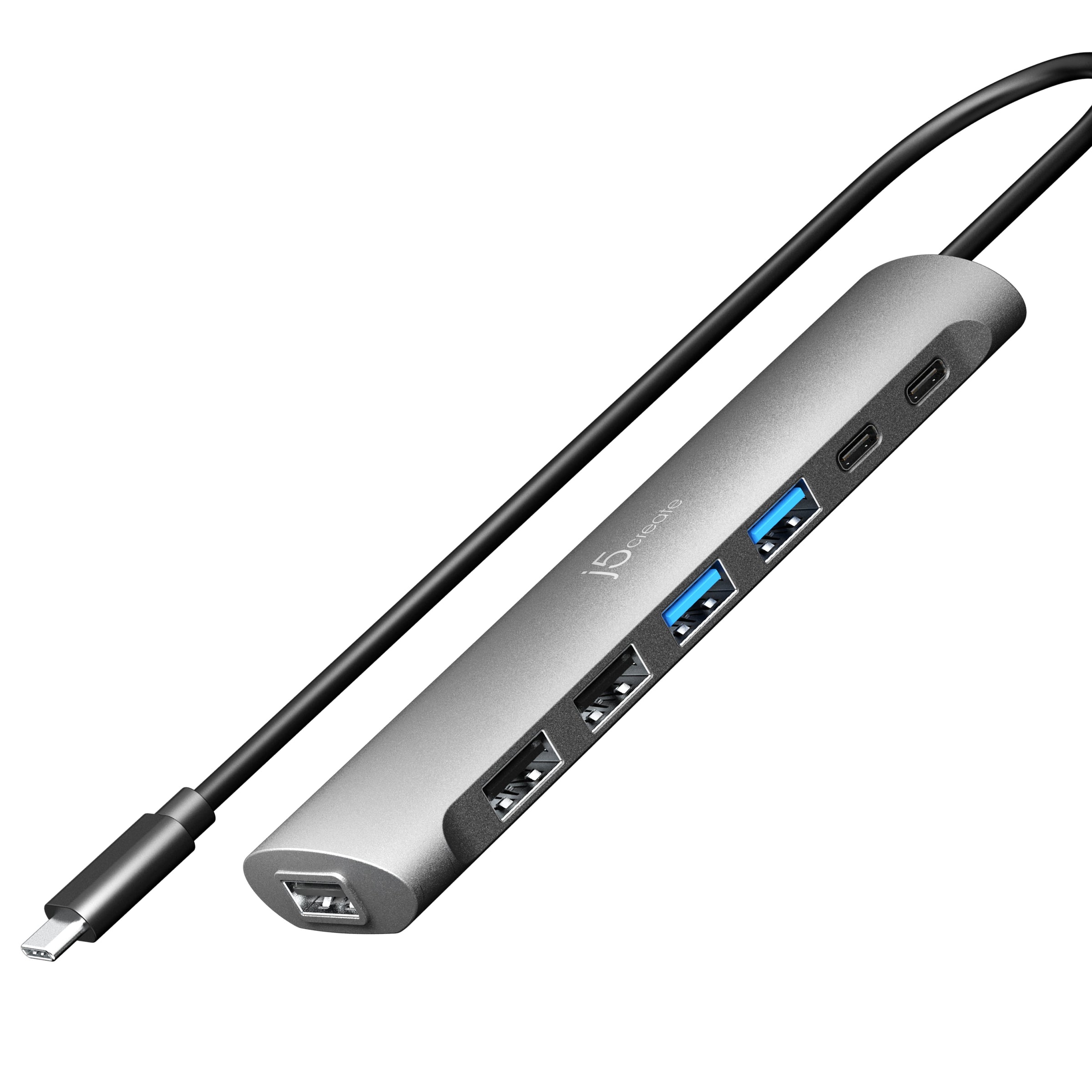

JCH3007P USB-C® 7-Port Hub 5A2C with DC Power Adapter

Stay Connected, Stay Powered
Model: JCH3007P

Expand your connectivity with the USB-C® 7-Port Hub 5A2C, designed for speed, stability, and versatility y. Featuring a dedicated USB-C® Host port, it ensures reliable high-speed data transmission. The hub offers two USB-C® Gen 1 (5Gbps) and two USB Type-A Gen 1 (5Gbps) ports for super-fast file transfers and seamless peripheral connections. For legacy support, three USB Type-A 2.0 ports deliver 480 Mbps, keeping older devices compatible.

Powered by an external 5V/3A DC adapter, this hub easily handles power-demanding devices -including support for up to two external hard drives simultaneously- ensuring consistent performance without draining your laptop. Compact yet powerful, it’s the ideal solution for professionals and everyday users who need multiple connections in one streamlined device.

  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT

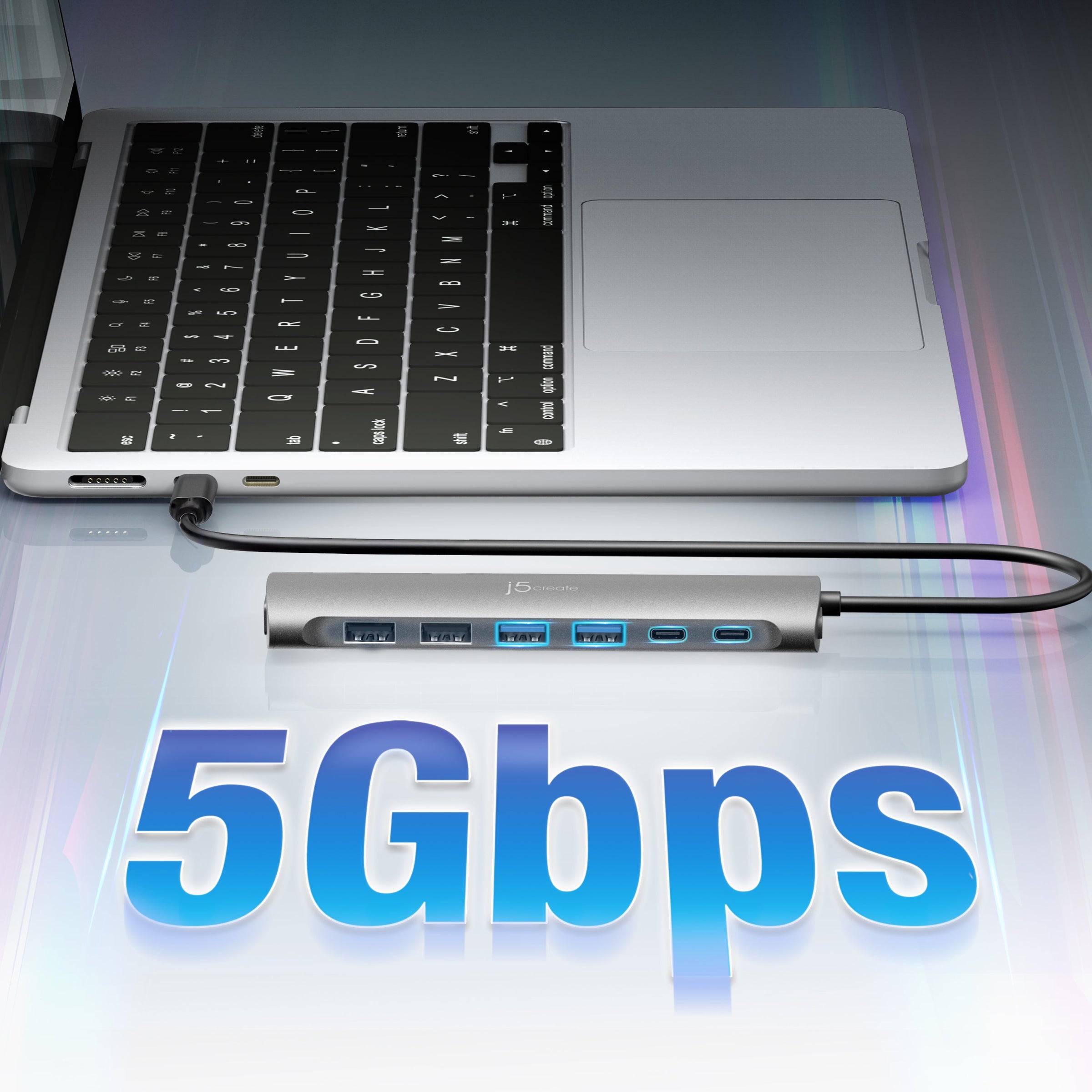

High-Speed 5Gbps Data Transfer

Two USB-C® and two USB-A 3.2 Gen 1 ports deliver blazing 5Gbps speeds for fast file transfers and modern peripherals.

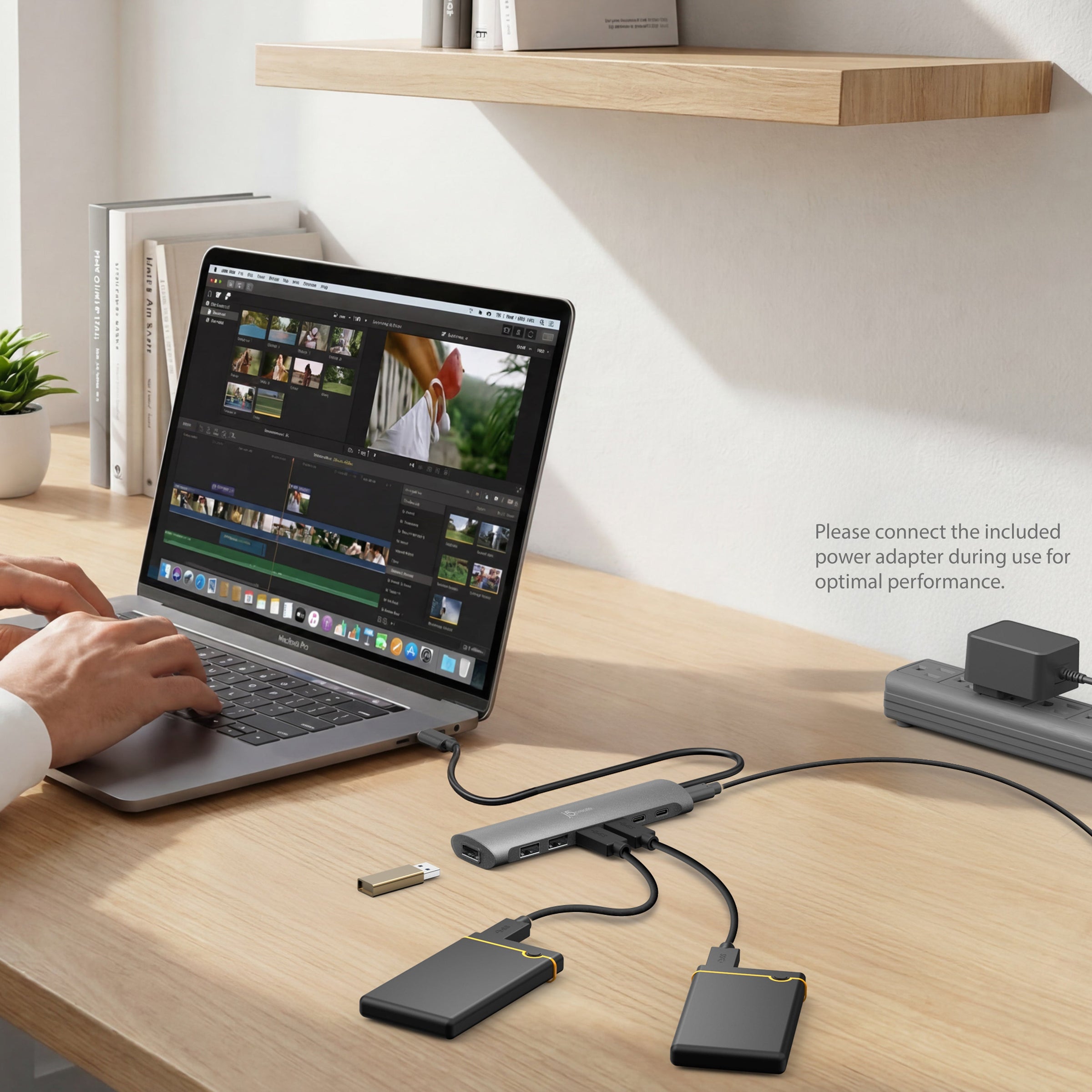

Dual Hard Drive Support

Equipped with a 5V/3A power adapter delivers stable power across all ports, supporting up to two external hard drives simultaneously without draining your laptop.

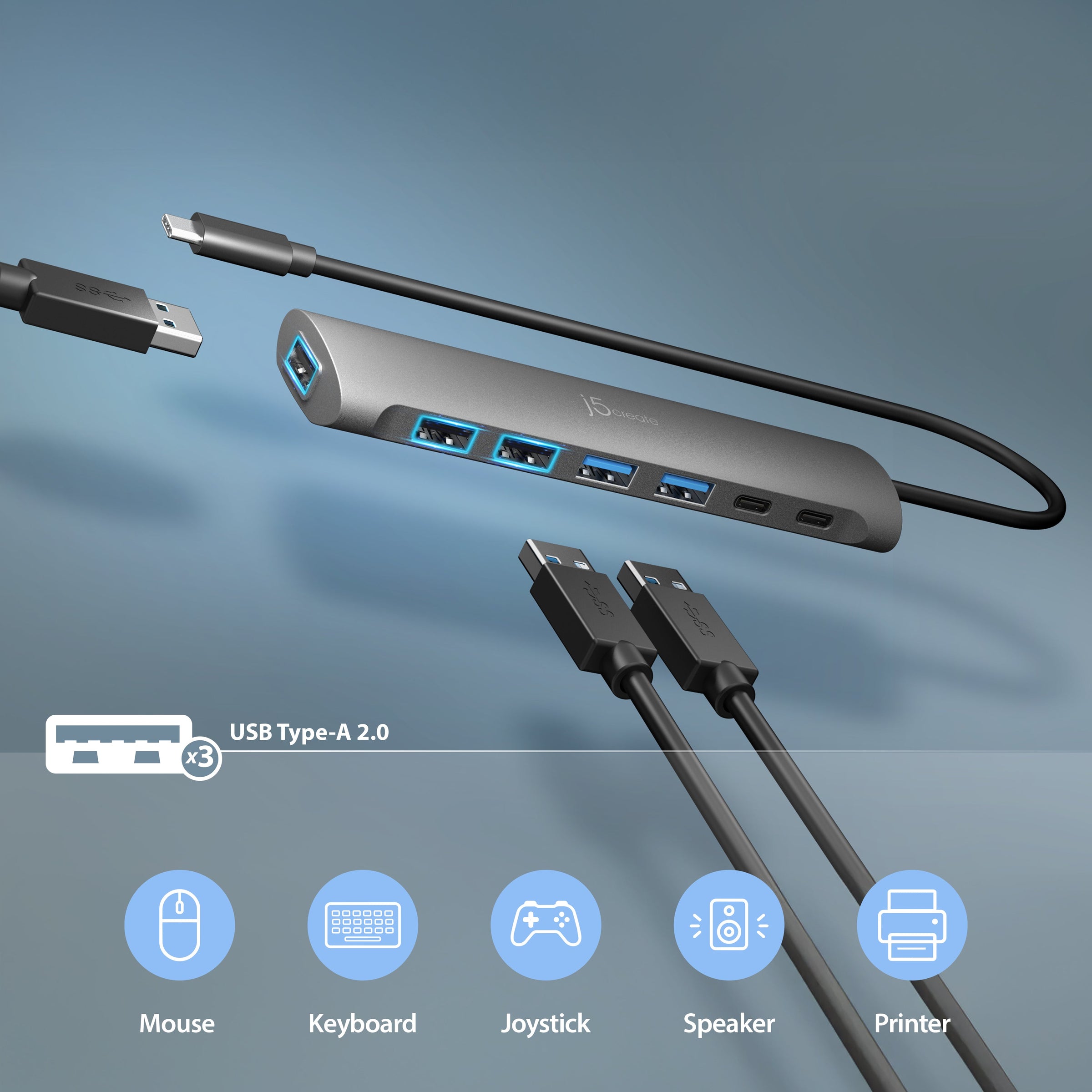

Legacy Device Compatibility

Three USB-A 2.0 ports (480Mbps) keep keyboards, mice, and older accessories reliably connected without occupying high-speed ports.

Sleek and Streamlined Design

Ultra-compact aluminum-style build engineered for desktop workstations and creative professionals who demand performance and aesthetics.

Universal Compatibility

Plug and play, designed for effortless use, simply connect and enjoy immediate expansion.

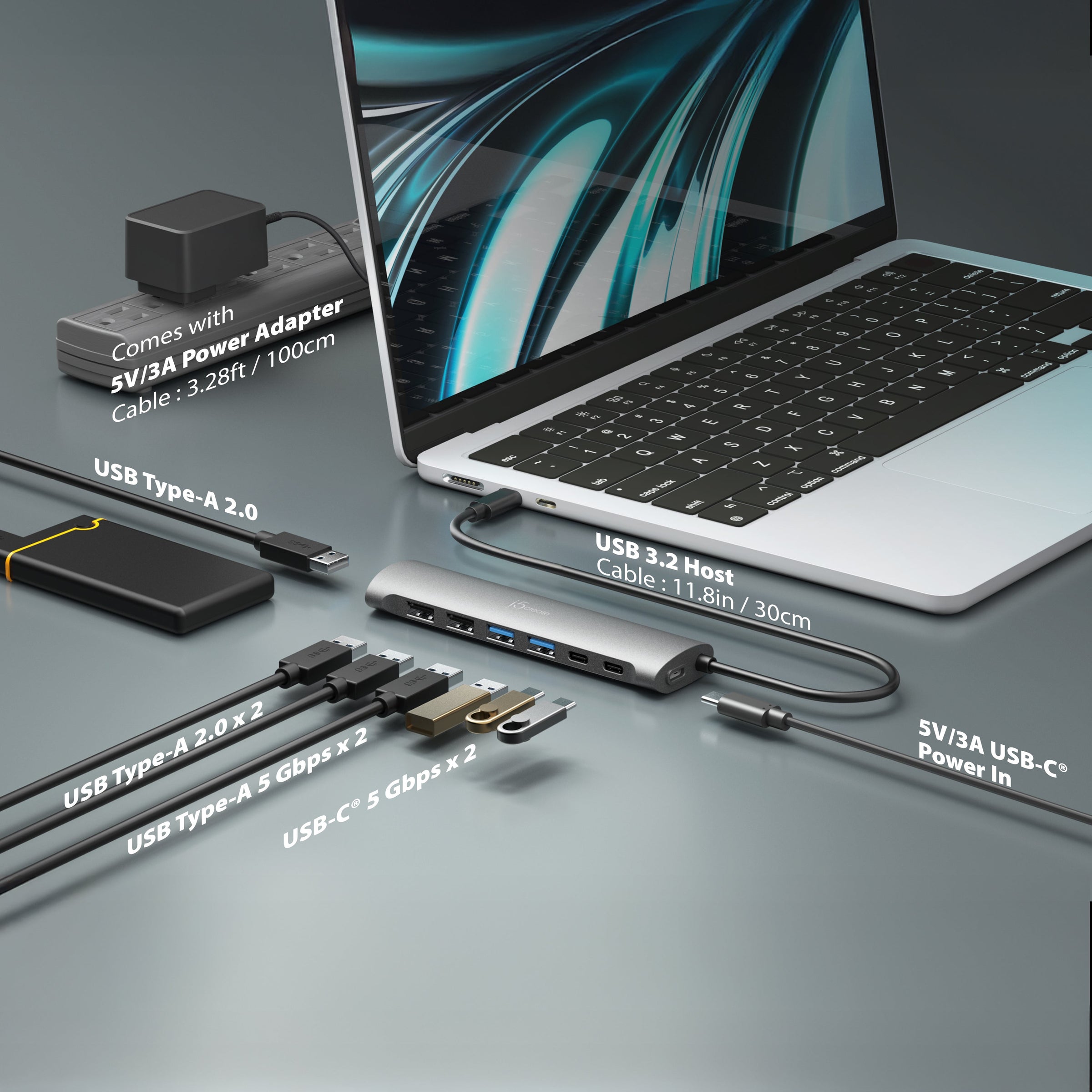

  • USB-C® Host Connectivity: Equipped with a dedicated USB-C® to Host port to guarantee stable, high-speed data transmission back to the computer.
  • SuperSpeed USB-C® Expansion: Includes 2x USB-C® Gen 1 ports delivering up to 5 Gbps bandwidth for fast file transfers and modern peripheral connectivity.
  • SuperSpeed USB Type-A Expansion: Includes 2x USB Type-A Gen 1 ports delivering up to 5 Gbps bandwidth for high-speed external storage and accessories.
  • Legacy Peripheral Support: Features 3x USB Type-A 2.0 ports delivering 480 Mbps bandwidth, optimized for absolute compatibility with older hardware or input devices.
  • Driverless Architecture: Provides true plug-and-play functionality across major operating systems with no driver installations or software setup required.
Hardware
host connector

USB-C® Male

ports
  • 1x- USB-C® to Host
  • 2x USB-C® 3.2 Gen1 5Gbps
  • 2x USB Type-A 3.2 Gen1 5Gbps
  • 3x USB Type-A 2.0 480 Mbps
  • 1x USB-C® 5V DC power in

(Note: External 5V/3A power adapter is included for power demanding device)

usb pass-through

Yes

warranty
2-year Limited
Performance
fast charging
N/A
max data transfer rate

5 Gbps

Mouse Specifications
Power
input current
Up to 0.8A
input voltage
100 - 240V
output current
3A
output voltage
5V
power consumption
≥ 500 mA
power delivery
No
Physical Specifications

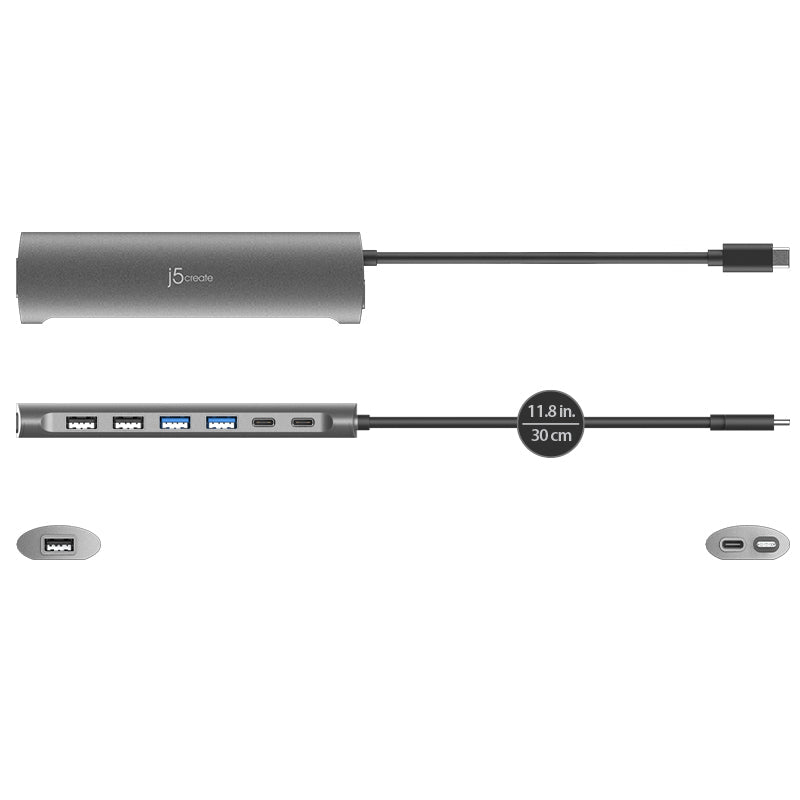

cable length
0.98 ft (30 cm)
color
Space Grey
enclosure type
Plastic
operating humidity
< 85% non-condensing
operating temperature
32 to 104°F (0 to 40°C)

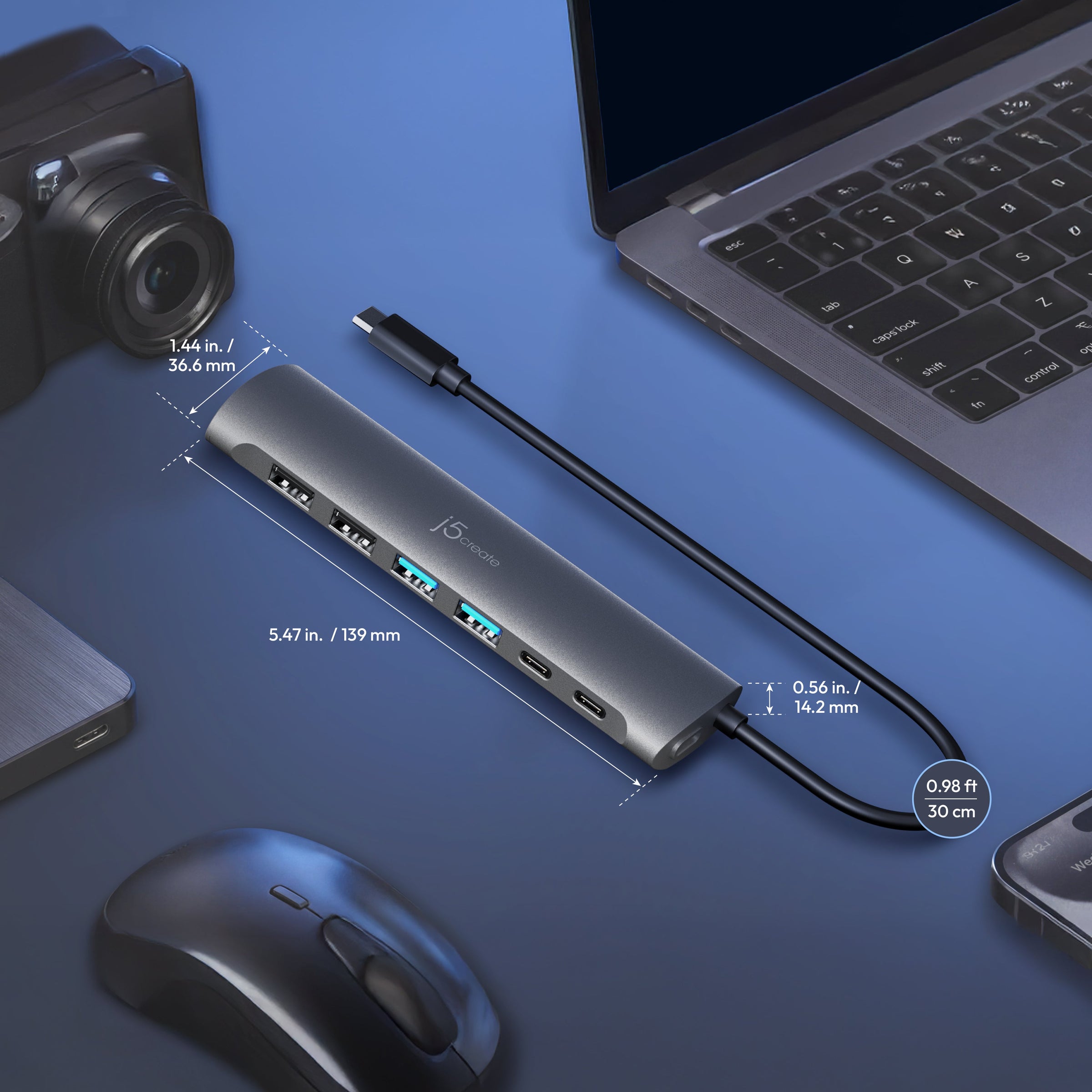

product depth
1.44 in. (36.6 mm)
product height
0.56 in. (14.2 mm)
product weight
140g (4.9 oz.) (60g / Adapter：80g)
product width
5.47 in. (139 mm)
storage humidity
< 85% non-condensing
storage temperature
14 to 149°F (-10 to 65°C)
Wireless Protocols
Package Contents
  • 1x JCH3007P USB-C® 7-Port Hub 5A2C with DC Power Adapter
  • 1x 5V/3A Power Adapter
  • 1x Quick Installation Guide

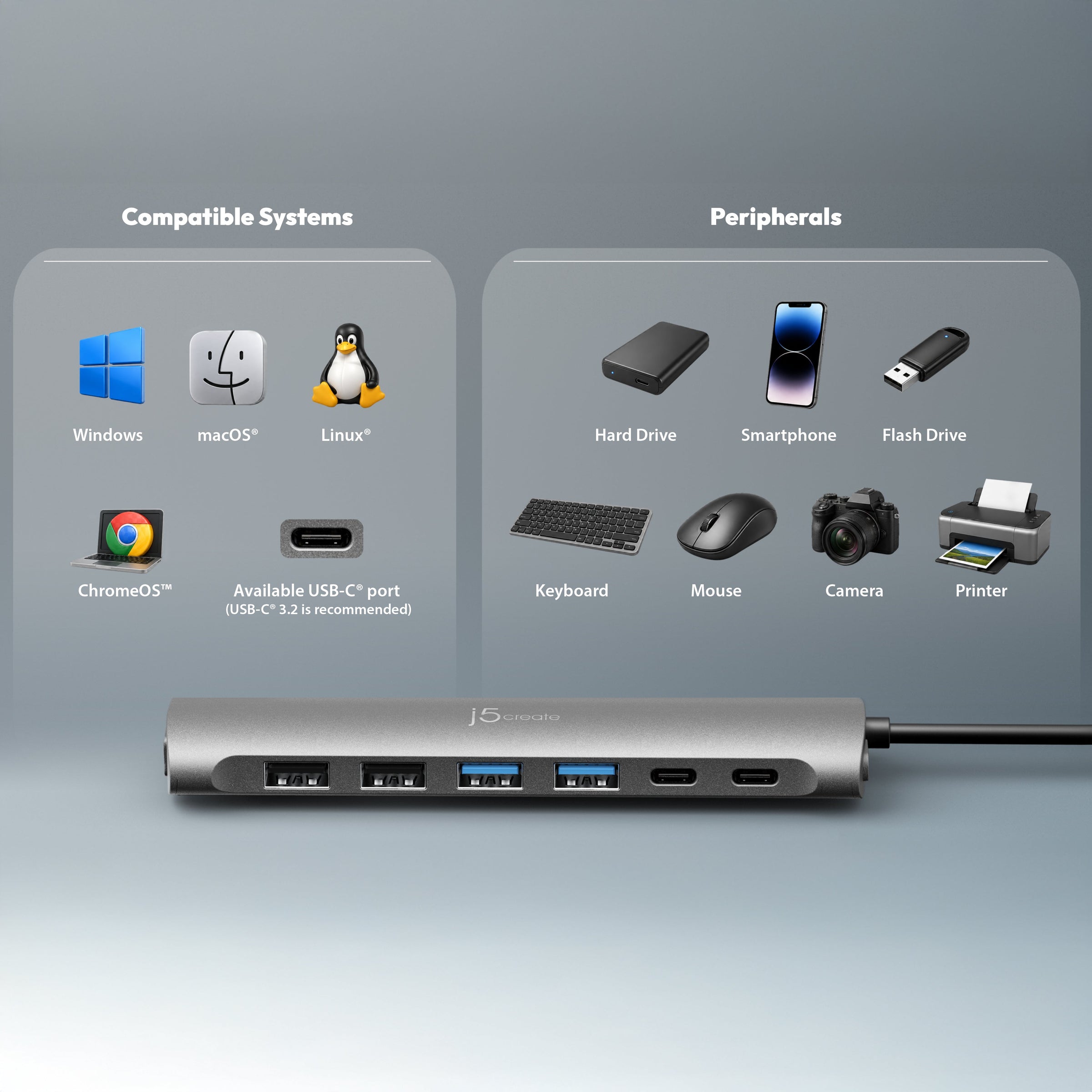

System Requirements
  • Microsoft® Windows® Compatibility: Windows® 10 or later
  • macOS® Compatibility: macOS® 10.11 and later
  • Linux® Compatibility: Linux® supported
  • ChromeOS™ Compatibility: ChromeOS™ supported
  • Hardware System Requirements: 1x Available USB-C® port (USB-C® 3.2 interface is highly recommended for optimal performance)
Special Notes
  • Bus-powered USB hubs only draw power from the connected device such as your computer's USB port. If you are using a high-powered USB device, attach the 5V DC power adapter to ensure maximum performance.
  • When a DC adapter is connected, we recommend, at most, two (2) bus-powered/portable external hard disk drive to be connected to the USB hub at a time.
