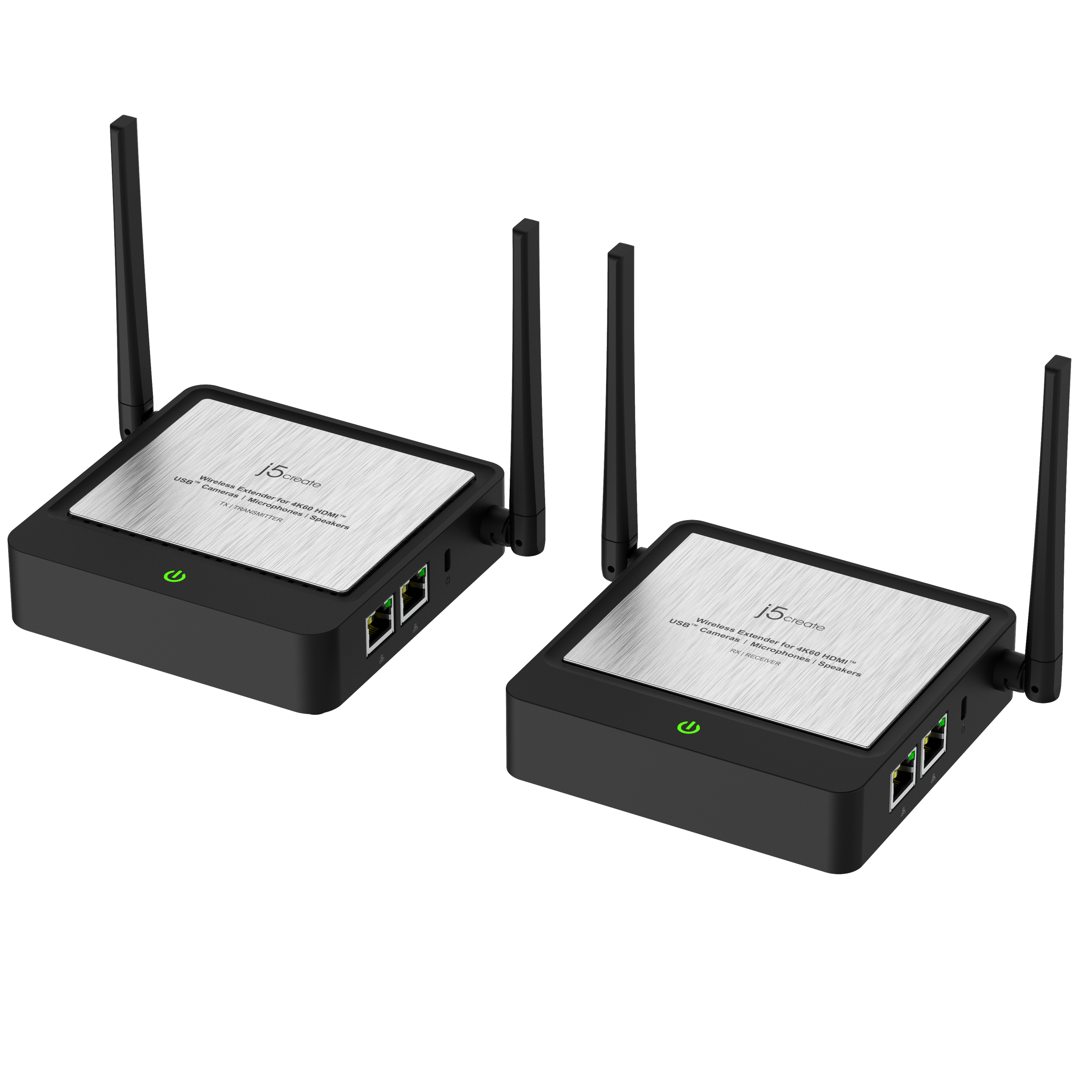

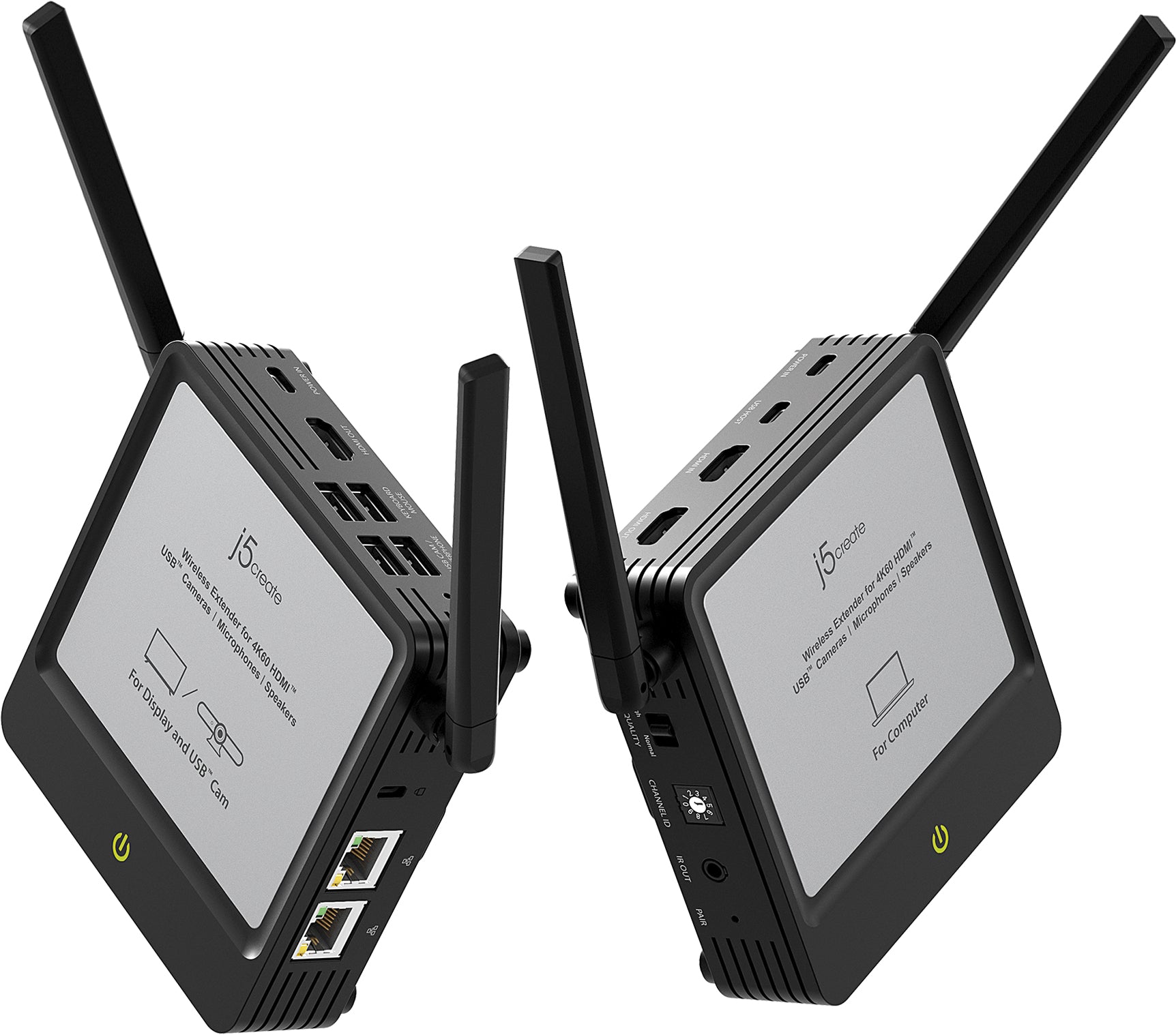

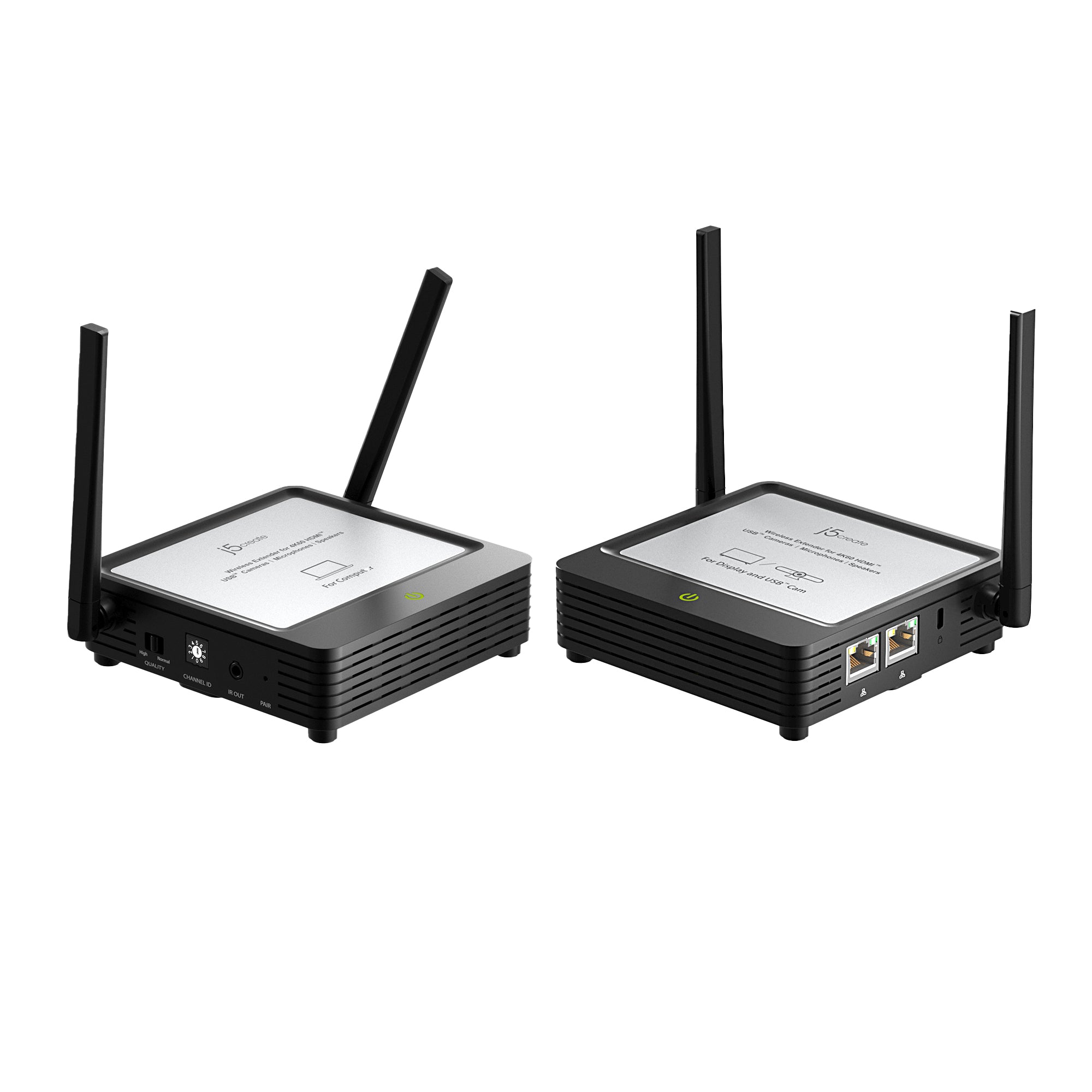

JVAW80 Wireless Extender for 4K60 HDMI™ and USB™ Cameras/Microphones/Speakers

Wirelessly project your screen to your 4K display, and access your USB™ cameras, microphones, and speakers remotely.
Model: JVAW80

The JVAW80 Wireless Extender for 4K60 HDMI™ and USB™ Cameras/Microphones/Speakers – your ultimate solution for seamless connectivity. Effortlessly convert any wired setup into a wireless one, perfect for large meetings or streaming. Enjoy up to 25 meters of wireless transmission with built-in 5 GHz wireless technology, ensuring stable video and audio connections. Compatible with a variety of camera formats and operating systems, it delivers high-resolution streaming up to 4K60.

 With robust security features and versatile connectivity options including HDMI™ loop out port and dual Gigabit Ethernet ports. Elevate your workspace with unparalleled convenience and performance. Compatible with Windows®, macOS®, and Chrome OS™, it's the perfect addition to any professional setup.


Please Contact Us For Availability


  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT



Professional and Organized Conference Setup

Streamline your boardroom by instantly converting wired USB webcams and HDMI™ displays into a seamless, wireless environment.

Uncompromising Visual Excellence, Up to 4K60

Supports HDMI™ 2.0 & HDCP 2.2. Deliver high-impact presentations with the clarity and low-latency performance your enterprise requires.
Note: To achieve 4K resolution with webcam, both the webcam and the video conferencing software must support H.264 video compression during operation.

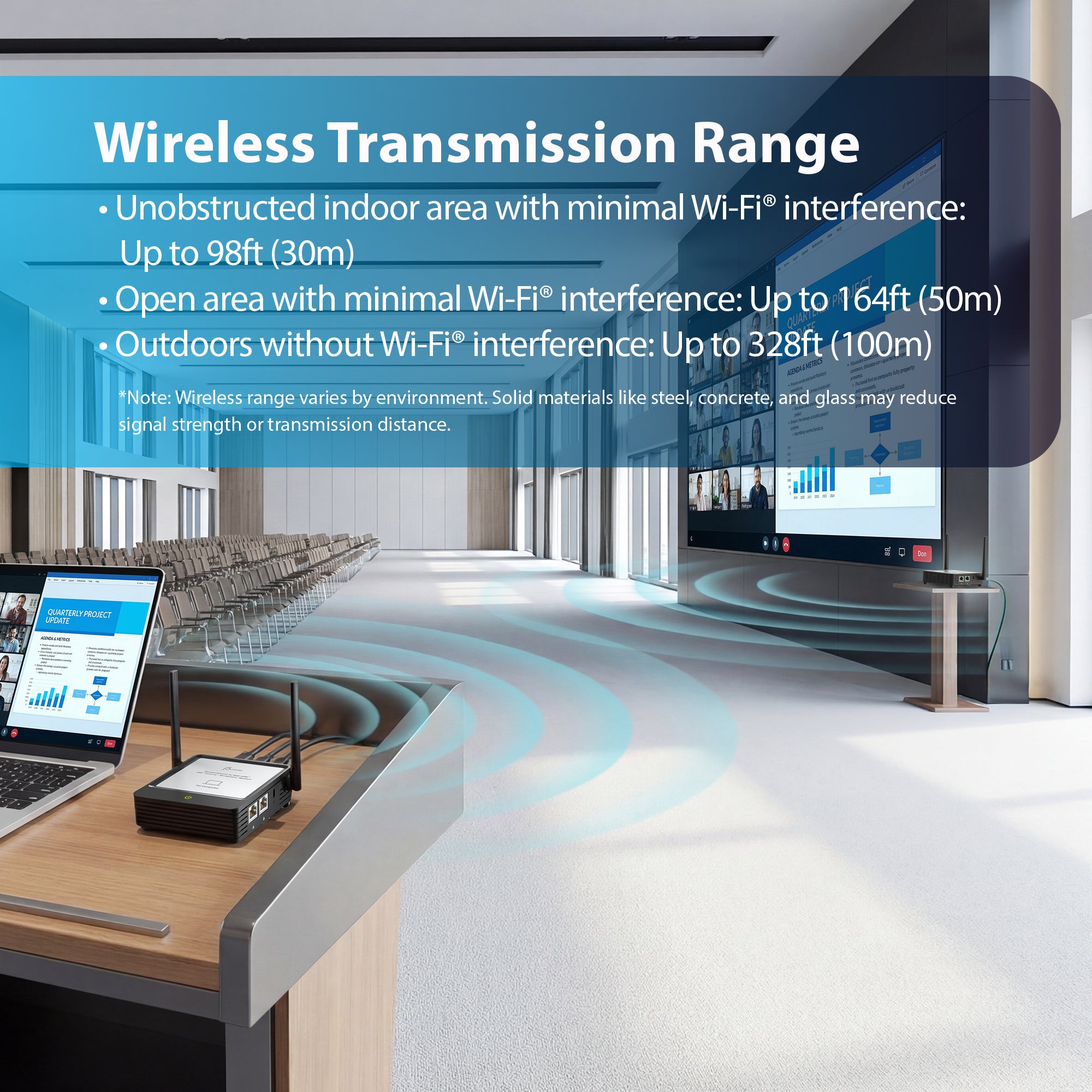

Wireless Freedom for Large Venues

Transform auditoriums and lecture halls into professional collaborative environments with a 98ft(30m) range for video and audio.

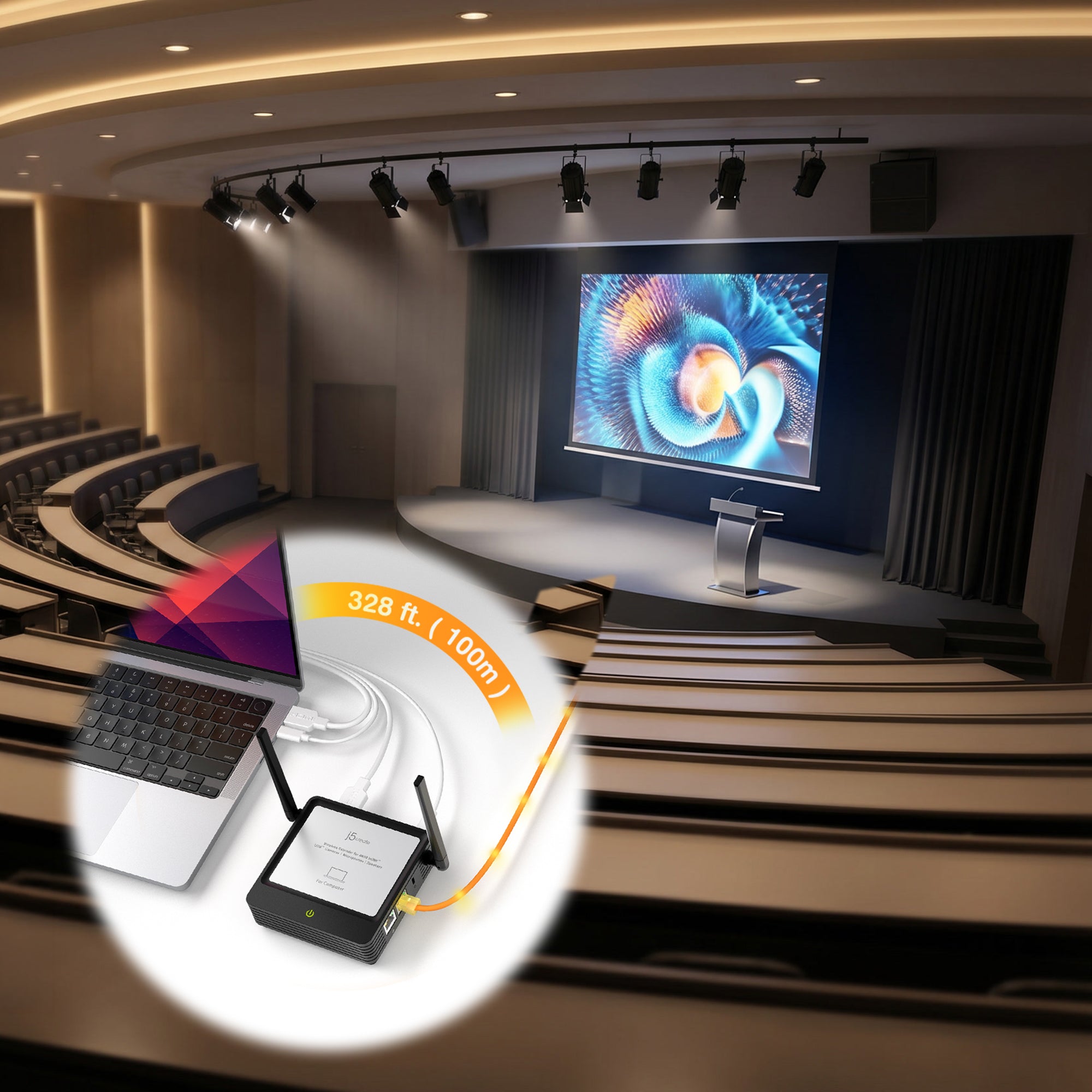

Massive Range, Zero Compromise

Master even the largest spaces with a flexible Ethernet connection that extends up to 328ft(100m) while maintaining elite 4K quality.

Enterprise-Grade Signal Stability

Trust in dedicated 5GHz wireless technology to provide the stable, smooth connection required for corporate meetings.

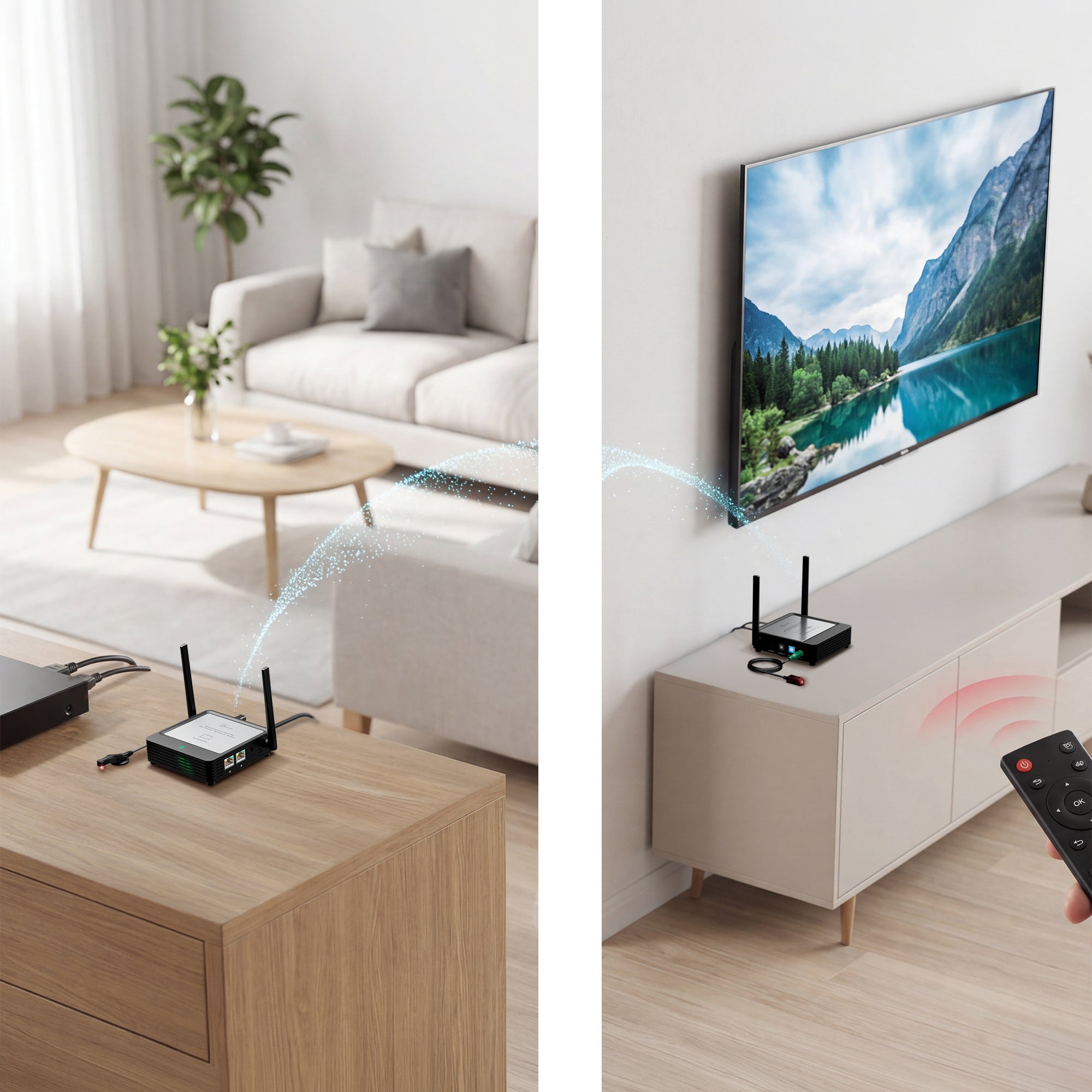

Seamless IR Pass-Through Control

Command your source devices with their original IR remotes, even from a separate room.
Note: IR Pass-Through Control is only compatible with TV boxes or DVD players equipped with an IR controller.

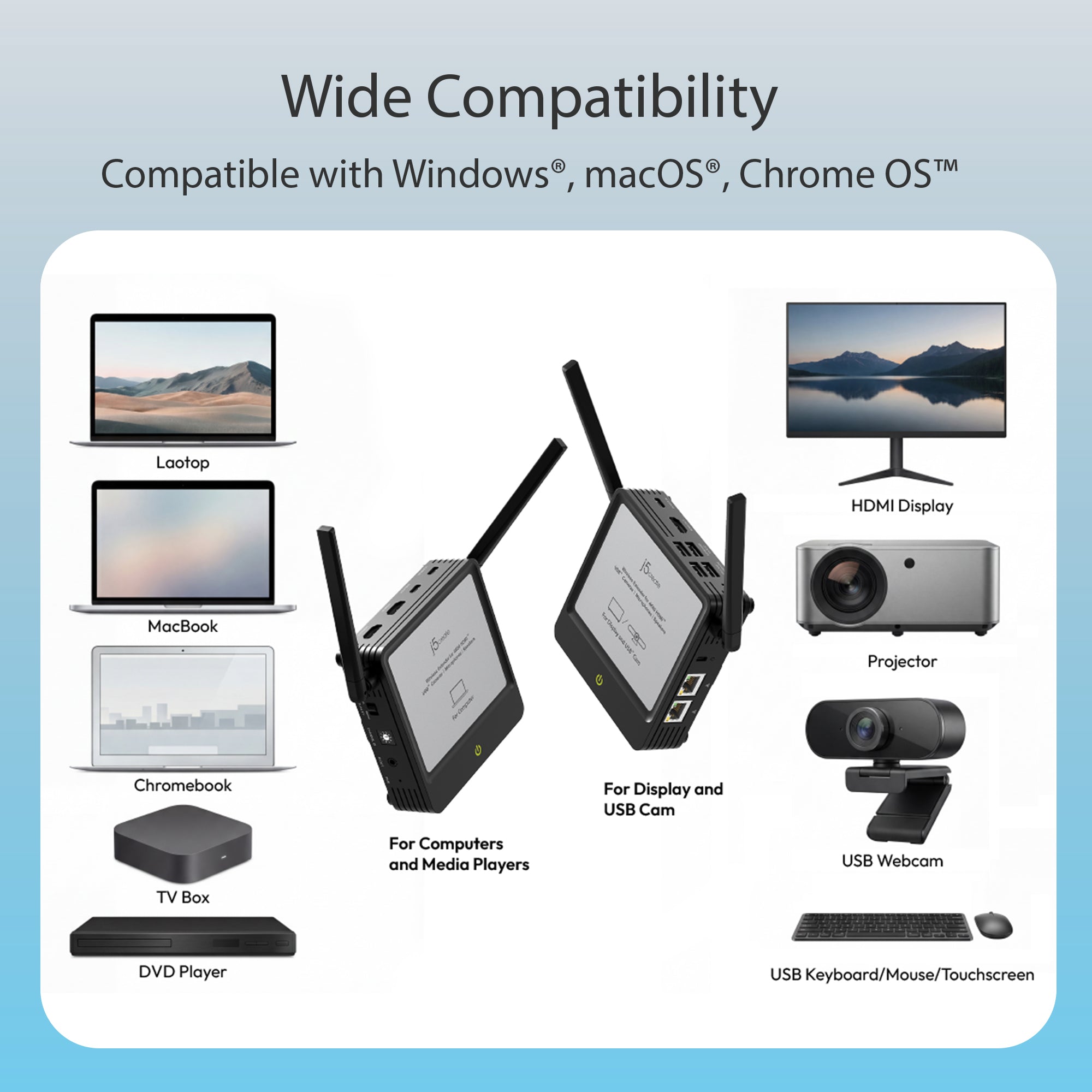

Wide Compatibility

Compatible with Windows®, macOS®, Chrome OS™
Note: USB webcam, keyboard, and mouse are subject to host device support and may not be compatible with TV boxes or DVD players

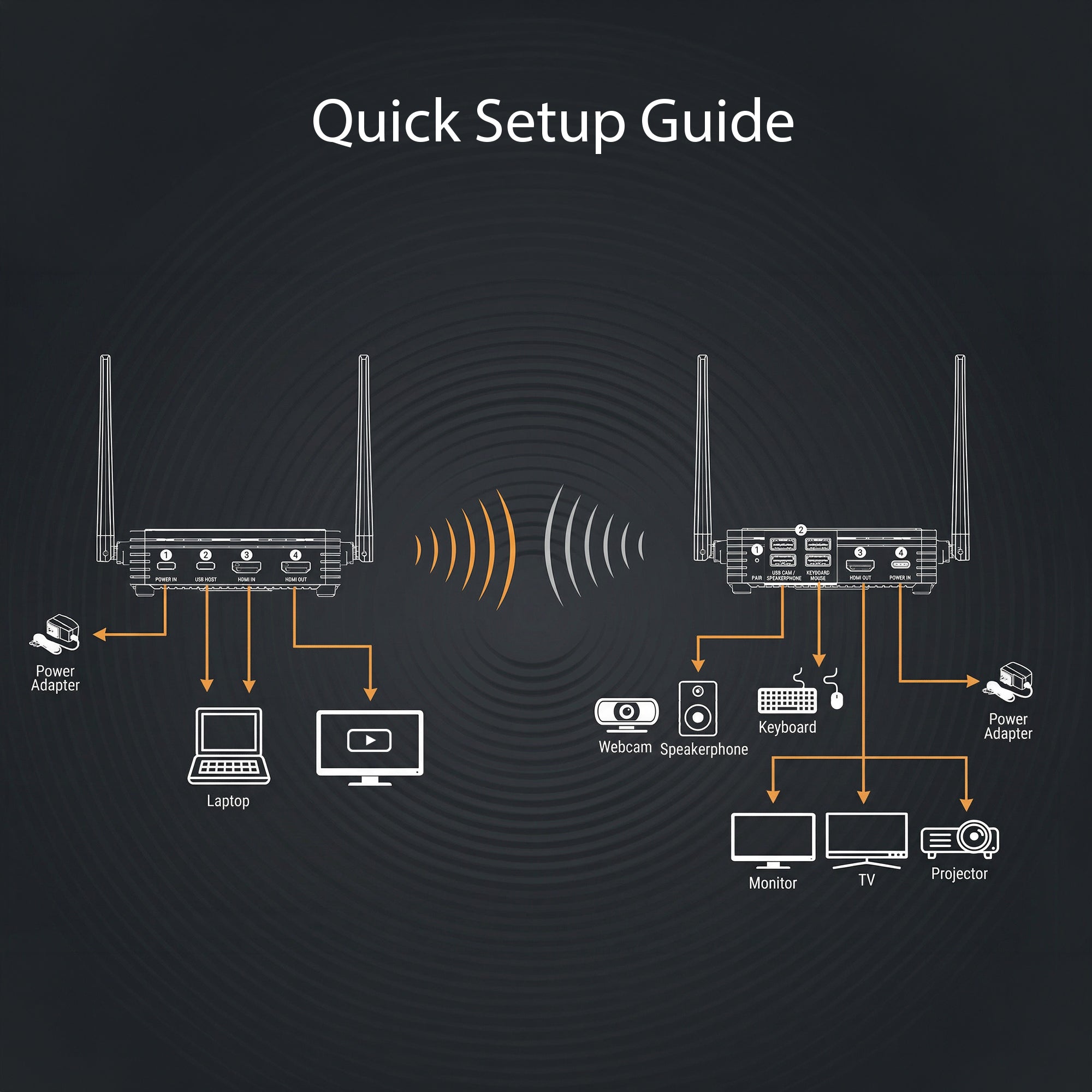

Quick Setup Guide

Suitable for a Variety of Environments

Package Contents

Physical Specifications

  • A wireless or CAT-5e solution for 4K60 HDMI™ devices and USB™ webcams, suitable for large meeting rooms, home offices, or streaming scenarios. Converts a wired USB™ camera and 4K60 HDMI™ video into a wireless one.
  • Provides support for USB™ camera with microphones/speaker and USB™ keyboard/mouse
  • Compatible with webcams that have a built-in microphone; transmits video and audio wirelessly
  • USB™ Cameras supports resolution up to 1080p@30 in MJPEG format, 1080p@60 and 4K@30 in H.264 format
  • Transmitter/ Receiver HDMI™ 2.0 & HDCP 2.2, supports 4K60 streaming
  • HDMI™ Capture Input and Display Output Resolution Supported up to 4K@60
  • Wireless transmission distance up to 25 meters, CAT-5e solution up to 100 meters
  • 2x RJ45 Gigabit Ethernet ports (CAT5e) for multiple TX/RX wired ethernet connections
  • Built-in 5 GHz wireless antenna ensures a stable video connection and smooth streaming experience
  • Support for transfer of IR remote control signals
  • Compatible with Windows®, macOS®, Chrome OS™
  • Compatible HDMI™ source including DVD players, Blu-ray™ players, PCs, notebooks and gaming machines (ex. Sony® PS4®, Nintendo Switch™) and more
Hardware
host connector
  • For Computer:
    • Available USB-C® or USB® Type-A port
led indicators
  • TX (Transmitter) / RX (Receiver):
    • Red: Powered on
    • Orange: Waiting to connect (TX and RX are connected, but the USB™ (Universal Serial Bus) camera or USB™ Speaker/Microphone is not connected to the TX USB™ port)
    • Orange flashing light: TX / RX pairing
    • Green: TX / RX connected, and TX USB™ camera is enabled

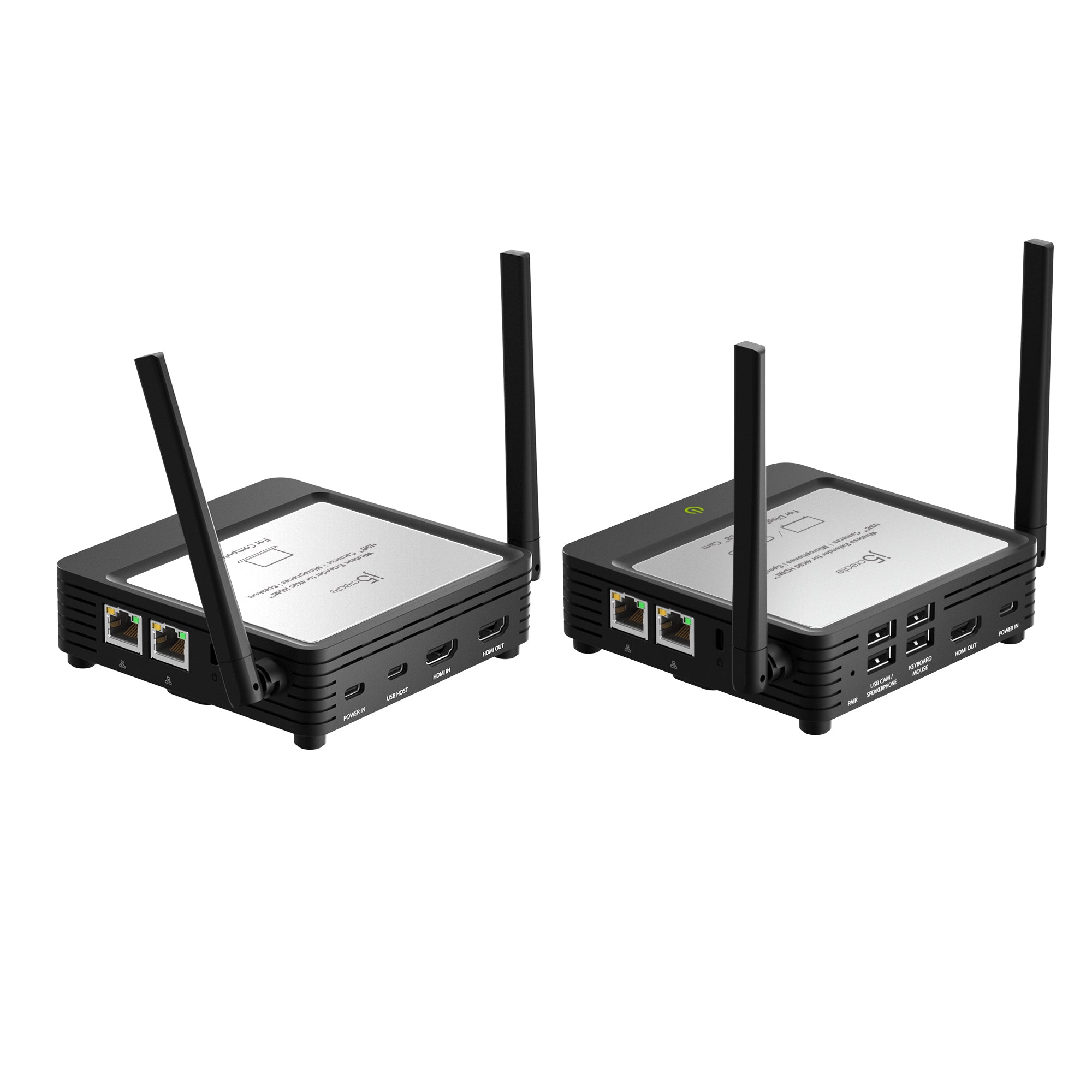

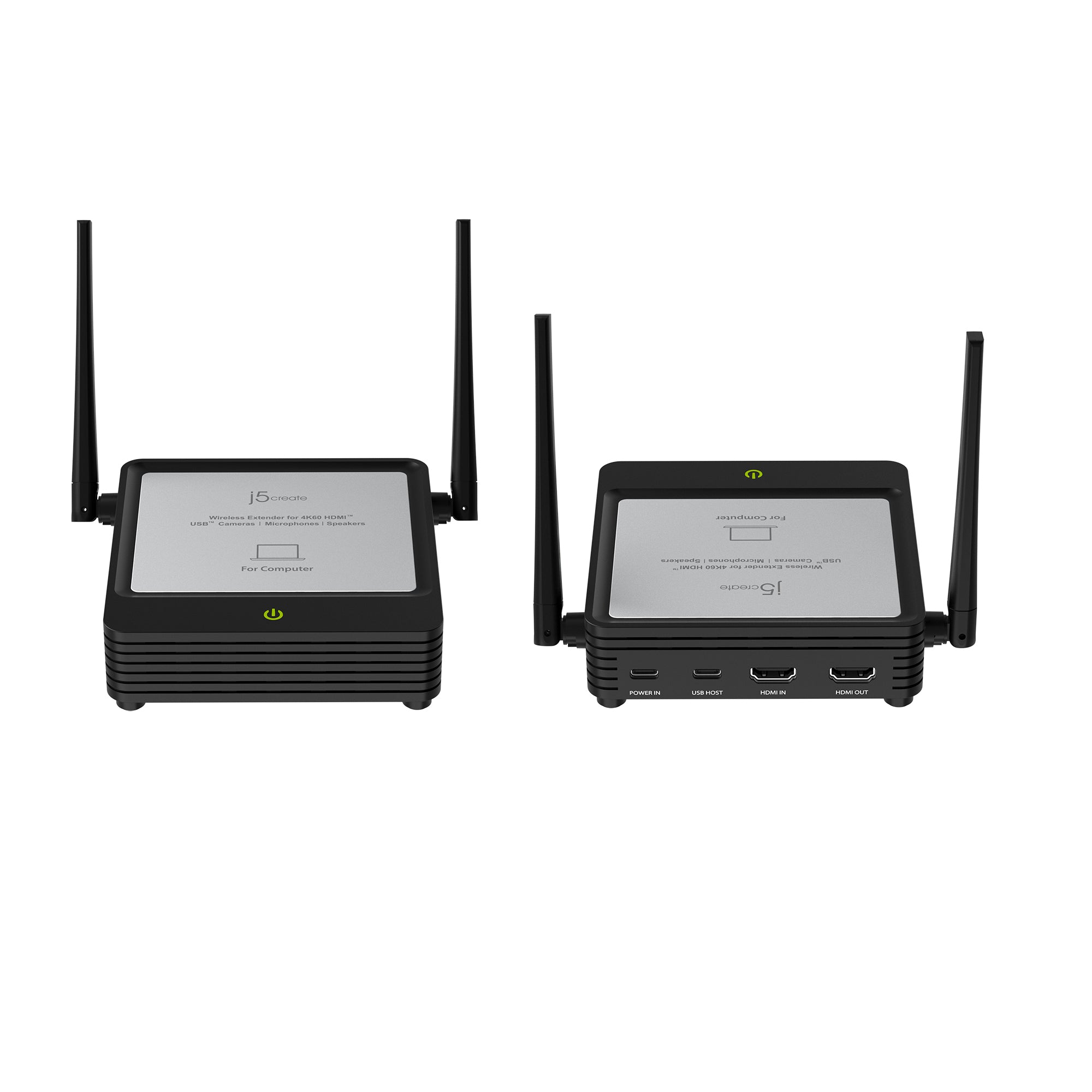

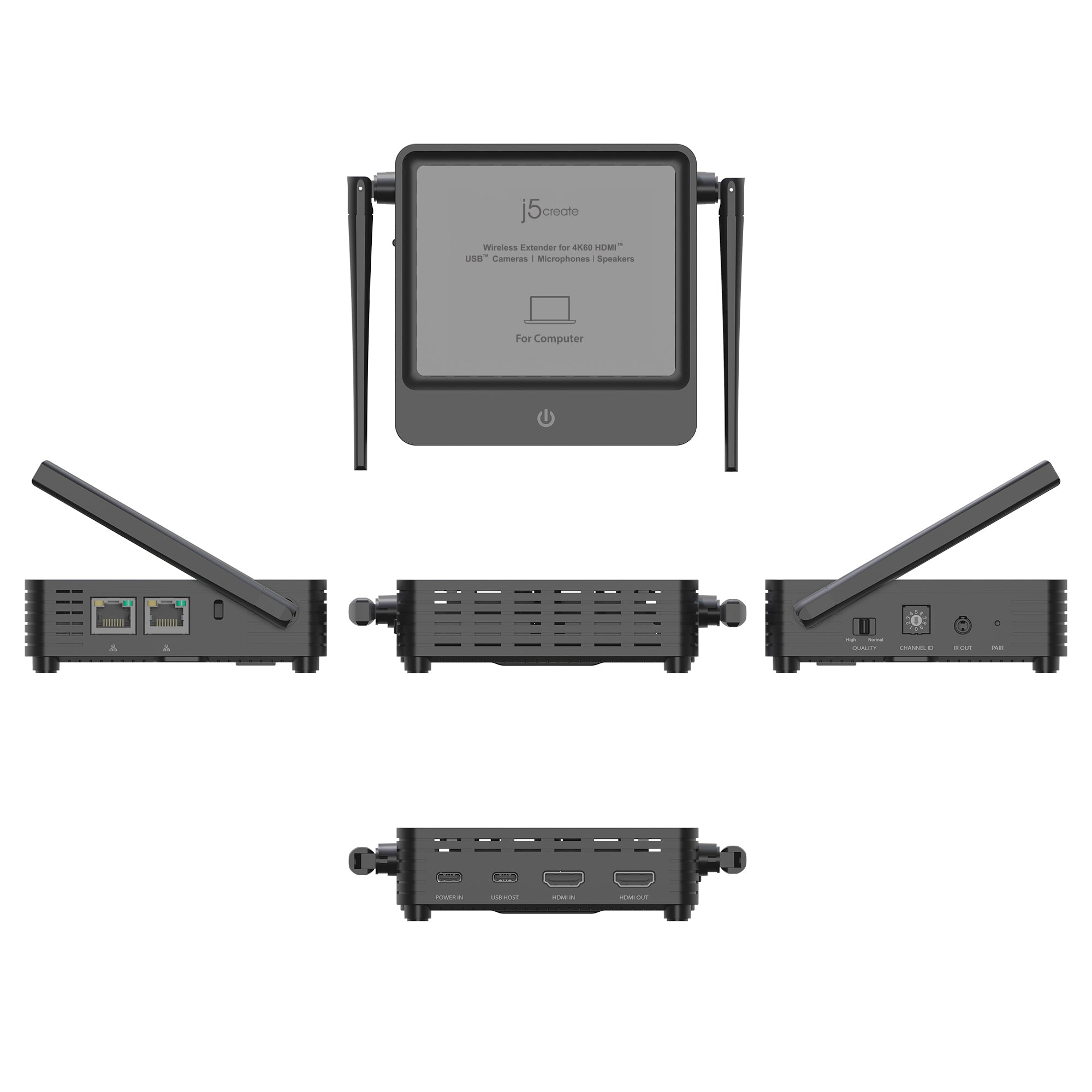

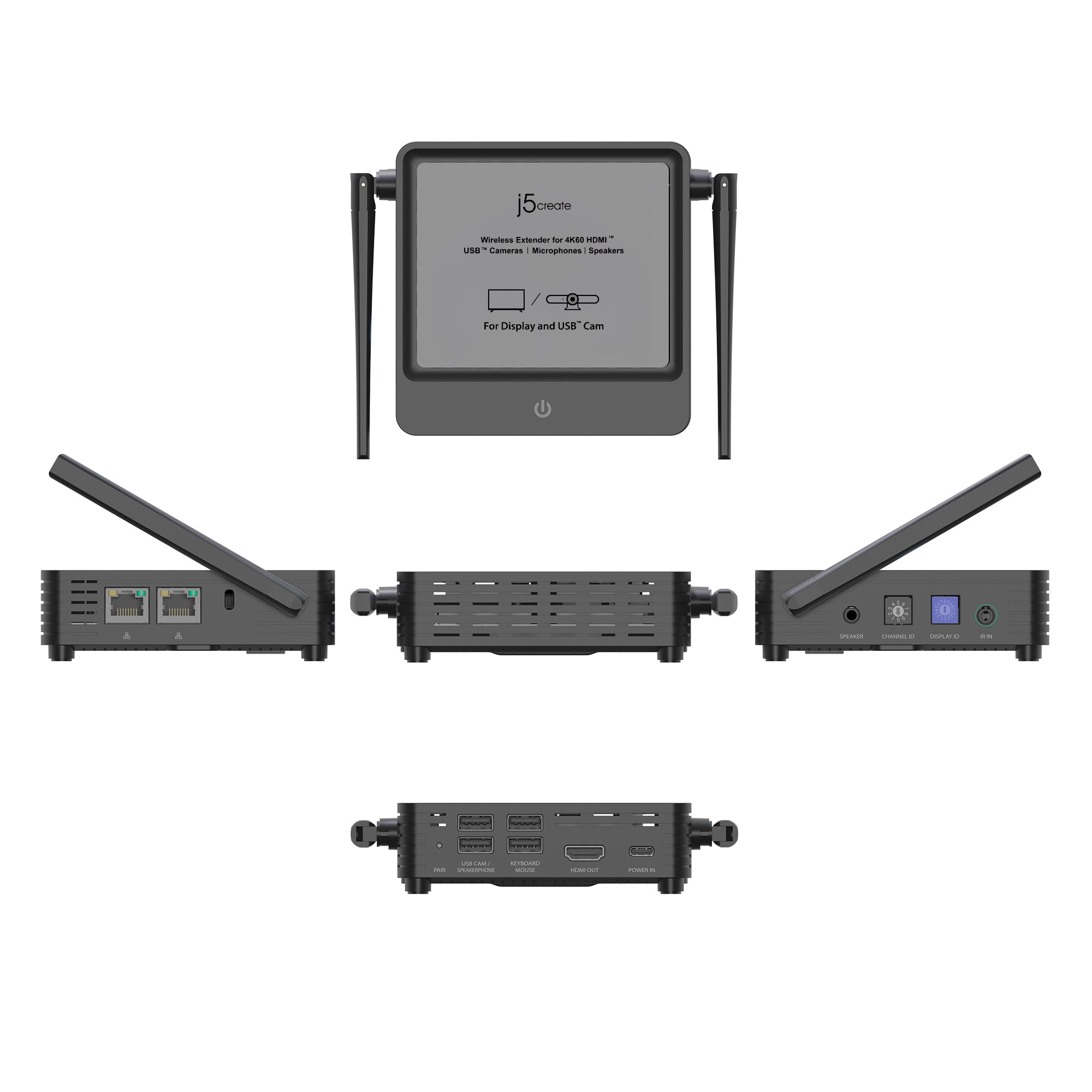

ports

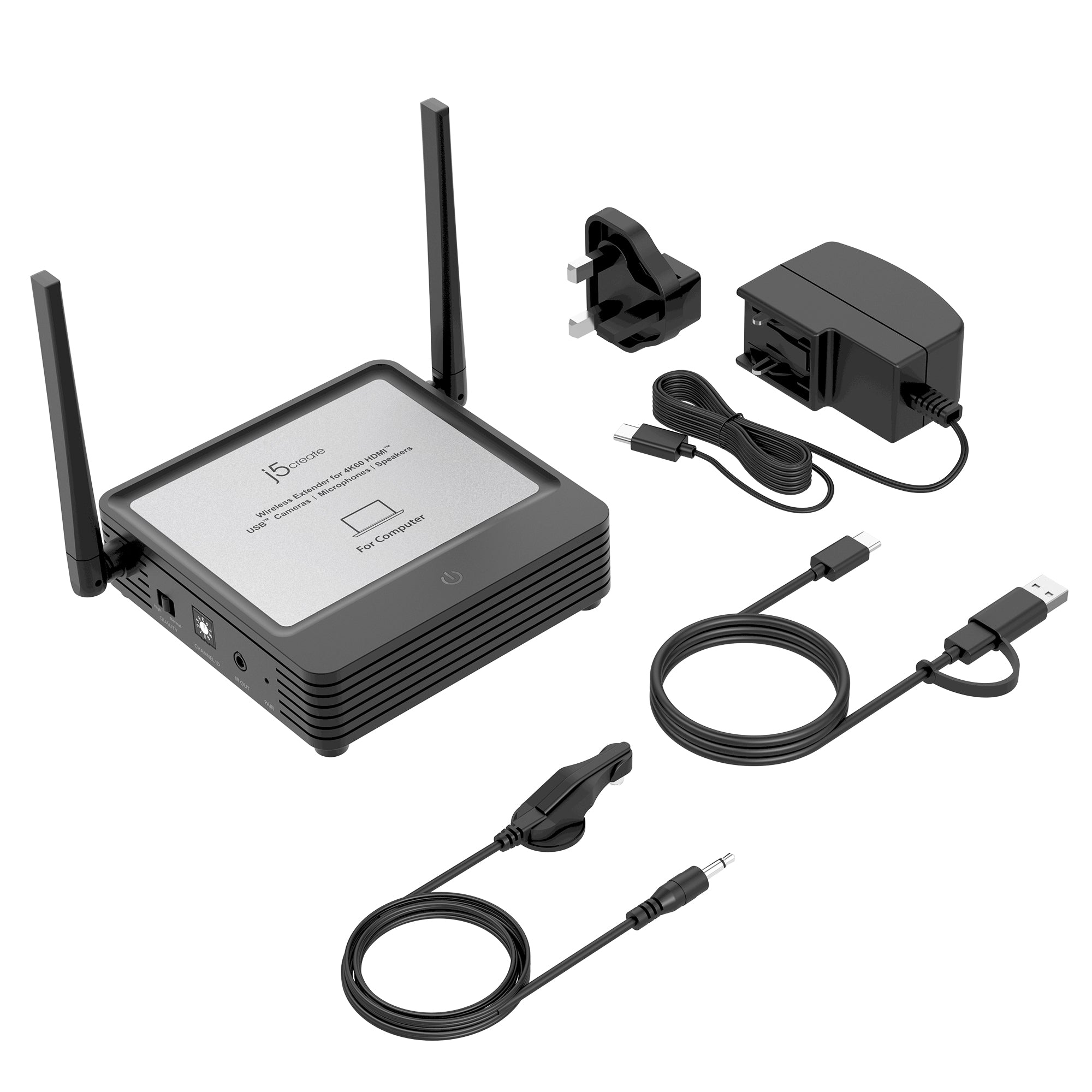

  • For Computer HDMI™ TX (Transmitter):
    • 1x USB-C® DC (Direct Current) Power in
    • 1x USB-C® Port to PC for UVC (USB Video Class) and keyboard/mouse
    • 1x 4K60 HDMI™ in
    • 1x 4K60 HDMI™ loop out
    • 2x RJ45 (Registered Jack 45) Gigabit Ethernet (CAT5e) for multiple TX/RX wired ethernet connections
    • 1x 3.5mm Jack for IR (Infrared) transfer
    • 1x QUALITY switch for HDMI™ Video Quality
    • 1x Black DIP (Dual In-line Package) rotary switch for wired ethernet connections TX – RX pairing
    • 1x Hook and loop fastener on the bottom
    • 1x K-Lock (Kensington Lock)

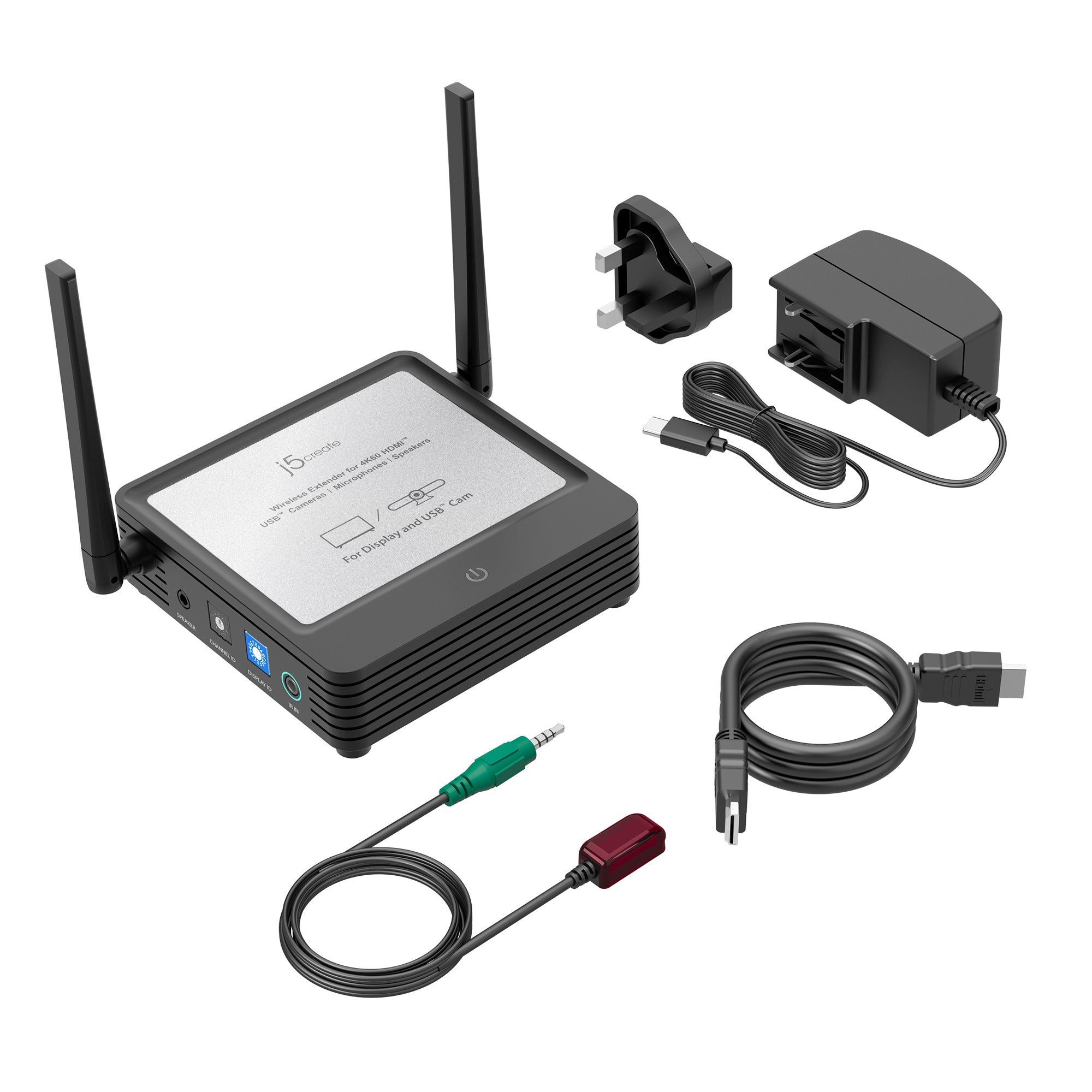

  • For Display and USB™ Cam HDMI™ RX (Receiver):
    • 1x USB-C® Power In
    • 1x 4K60 HDMI™ out
    • 4x USB™ Type-A Female (Camera/Speaker/Microphone/Keyboard/Mouse)
    • 2x RJ45 (Registered Jack 45) Gigabit Ethernet (CAT5e) for multiple TX/RX wired ethernet connections
    • 1x 3.5mm Audio Jack for HDMI™ Audio source output
    • 1x 3.5mm Jack for IR (Infrared) transfer
    • 1x K-Lock (Kensington Lock)
    • 1x Black DIP (Dual In-line Package) rotary switch for wired ethernet connections TX – RX pairing
    • 1x Blue DIP (Dual In-line Package) rotary switch for Display Mode Selector
    • 1x Hook and loop fastener on the bottom
power source
TX (Transmitter): • 1 - USB-C® DC 5V/3A Power Adapter RX (Receiver): • 1 - USB-C® DC 5V/3A Power Adapter
warranty
2-year Limited
Performance
audio channel
2.1 CH stereo
display output supported reso
  • Input Resolution Range:
    • 720p/ 1080p @60Hz and 3840x2160
    • 2160p@24/25/30/60Hz
    • 2560x1440@60Hz/ 1920x1200@60Hz
  • Output Resolution Range:
    • 720p/ 1080p @60Hz and 3840x2160
    • 2160p@24/25/30/60Hz
    • Ultra HDTV compatible
    • 2560x1440@60Hz/ 1920x1200@60Hz
max display resolution
  • H.264:
    • 2160p @ 30 FPS
    • 1080p @ 60 FPS
  • MJPEG:
    • 1080p / 720p / 480p / 240p @ 30 FPS
  • YUV:
    • 480p / 240p
Mouse Specifications
Power

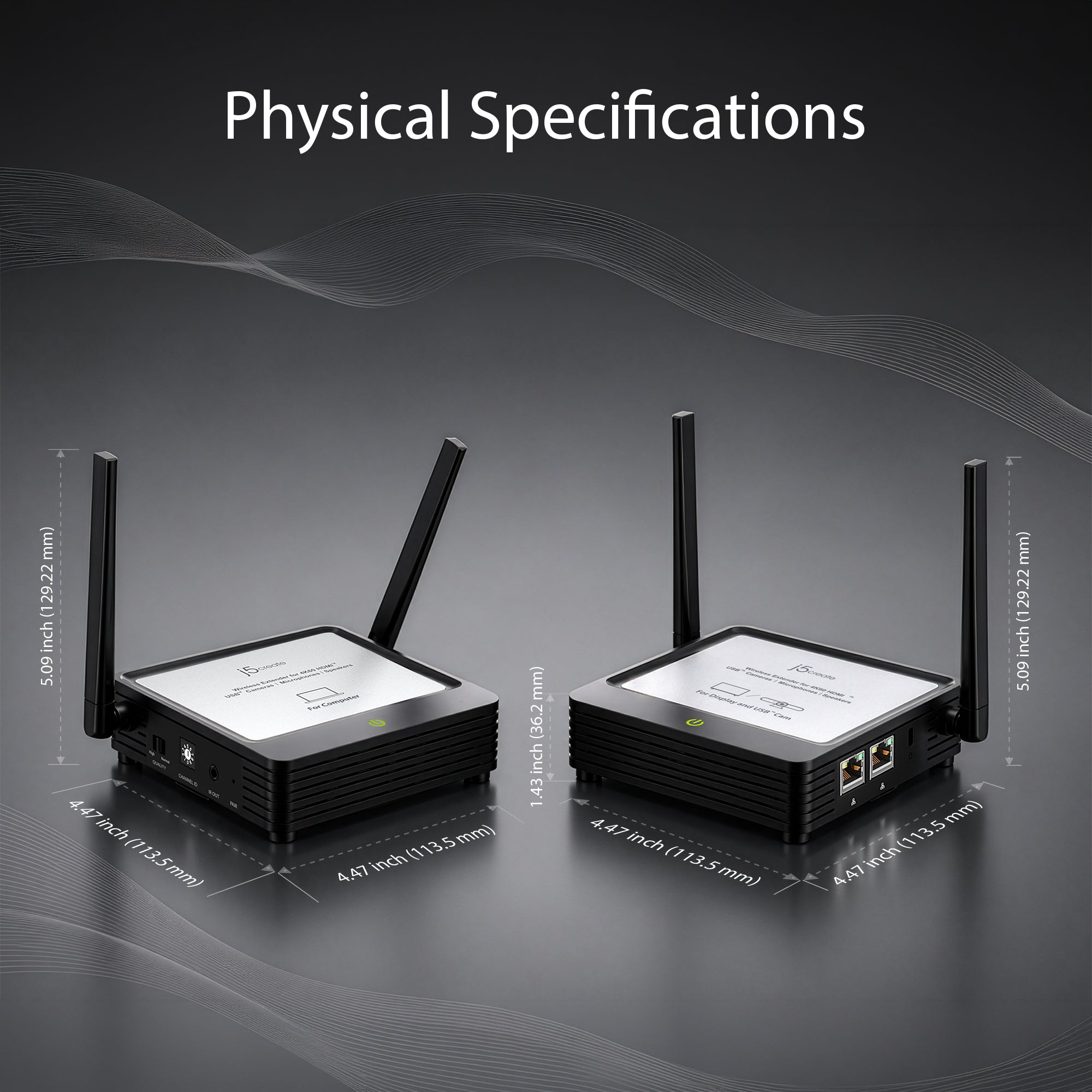

Physical Specifications
cable length
N/A
color
Black/Silver
enclosure type
Plastic
operating humidity
< 85% non-condensing
operating temperature
32 to +104°F (0 to +40°C)
product depth
Transmitter (TX): 4.5 in. (113.5 mm) Receiver (RX): 4.5 in. (113.5 mm)
product height
Transmitter (TX): 1.2 in. (29.5 mm) Receiver (RX): 1.2 in. (29.5 mm)
product weight
Whole set: 28.9 oz (819g) Transmitter (TX) x1: 10.3 oz (293g) Receiver (RX) x1: 9.6 oz (272.5g) DC 5V/3A Power Adapter x2: 9 oz (254g)
product width
Transmitter (TX): 4.5 in. (113.5 mm) Receiver (RX): 4.5 in. (113.5 mm)
storage humidity
< 85% non-condensing
storage temperature
-4 to +122°F (-20 to +50°C)
Wireless Protocols

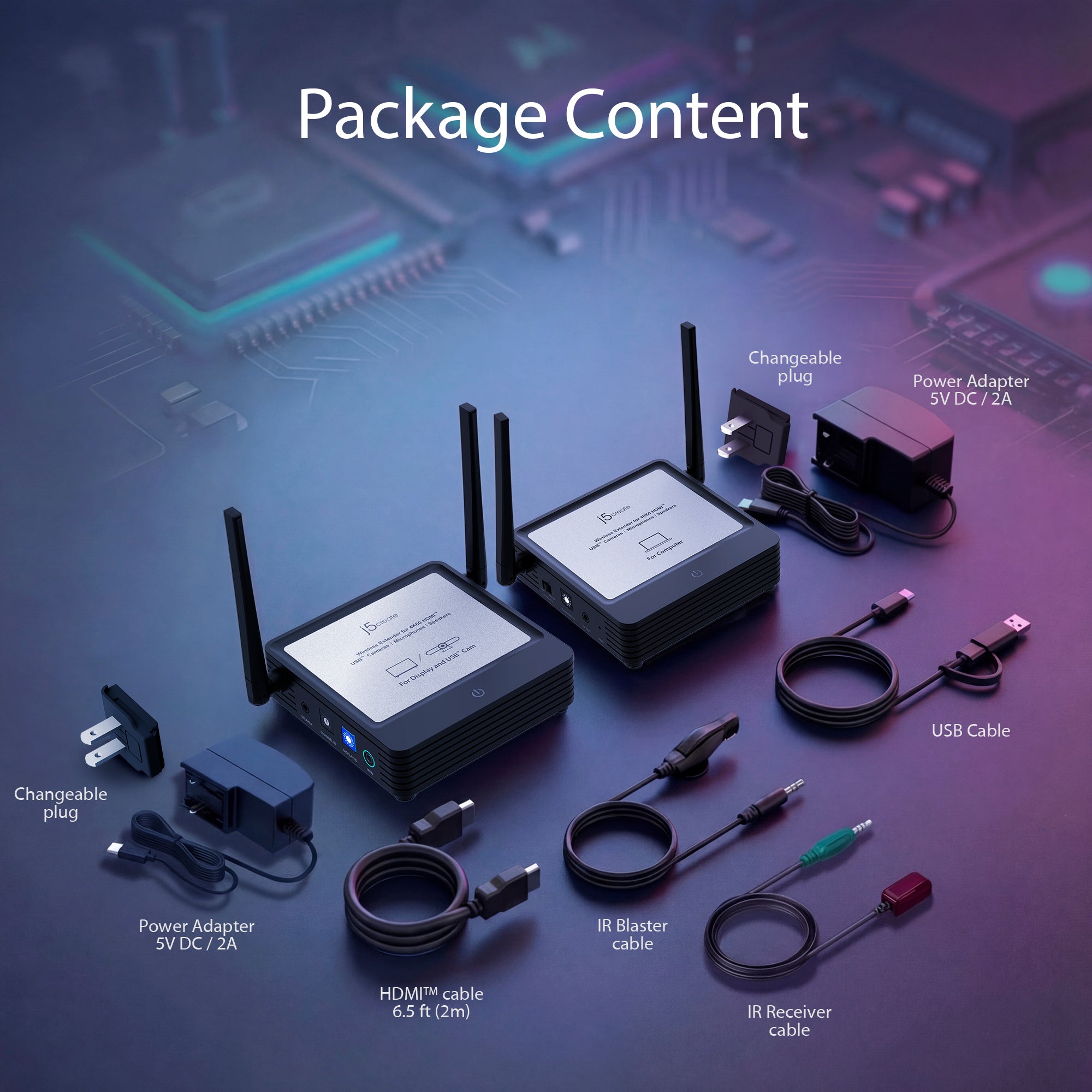

Package Contents
  • 1x JVAW80 Wireless Extender for 4K60 HDMI™ and USB™ Cameras / Microphones / Speakers (1x Transmitter & 1x Receiver)
  • 2x DC 5V/3A Power Adapters (USB-C®)
  • 1x Quick Installation Guide (QIG)
System Requirements
  • Available USB-C® or USB™ Type-A port
  • Operating Systems:
    • Windows® 11 / 10
    • macOS® 10.10 or later
    • Chrome OS™
Special Notes
  • Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
  • Priority Audio-Output for the transmitter (TX) ports: 3.5 mm Speaker → USB™ Speaker/microphone → USB™ camera with speaker/microphone.
  • TX and RX devices will connect and pair with each other automatically. If devices are properly paired and a USB™ camera has been connected with the transmitter (TX), then the camera will be automatically activated.
  • Please use this wireless extender set in the same space to avoid having the signal obstructed by walls. If you experience unstable transmission or poor image quality, please check for any other wireless signals that may be causing interference.
  • Only one set can be used in the same space. Using multiple units may cause radio wave interference and it may not work properly.
  • Pair Button:
    • If TX are RX devices are close together but, the TX and RX device’s LEDs are red and/or if they disconnect, please try turning on “pairing mode”.   To turn on paring mode find the Pair button located on the bottom side of the TX and RX devices. Push and hold the TX and RX devices’ pairing buttons for 5 seconds. The power LED will change orange and will blink for 1 minute. If TX and RX device are paired, the LED will turn green and stop blinking.
