JCD362 Flexible Ports USB-C® 4K144 HDMI™ Hub - Slim 8 in 1

Windows®/ macOS®/ Chrome OS™ Compatible
Model: JCD362

This hub provides extra connectivity for your computer; featuring 4K144 HDMI™, six USB™ data ports, and PD pass through charging. Connect to three USB™ devices, choose either Type-C or Type-A for added flexibility. The multi-adapter’s small size makes it easy to carry and helps save desk space. The HDMI™ port allows you to connect to a 4K monitor or TV. Equipped with USB™ 3.2 Gen 1 support for transferring files. This hub is designed for ultimate convenience, allowing you to start using it right out of the package. With its plug-and-play functionality, there's no need for any driver installation, just plug it in and you're good to go.



Please Contact Us For Availability


  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT

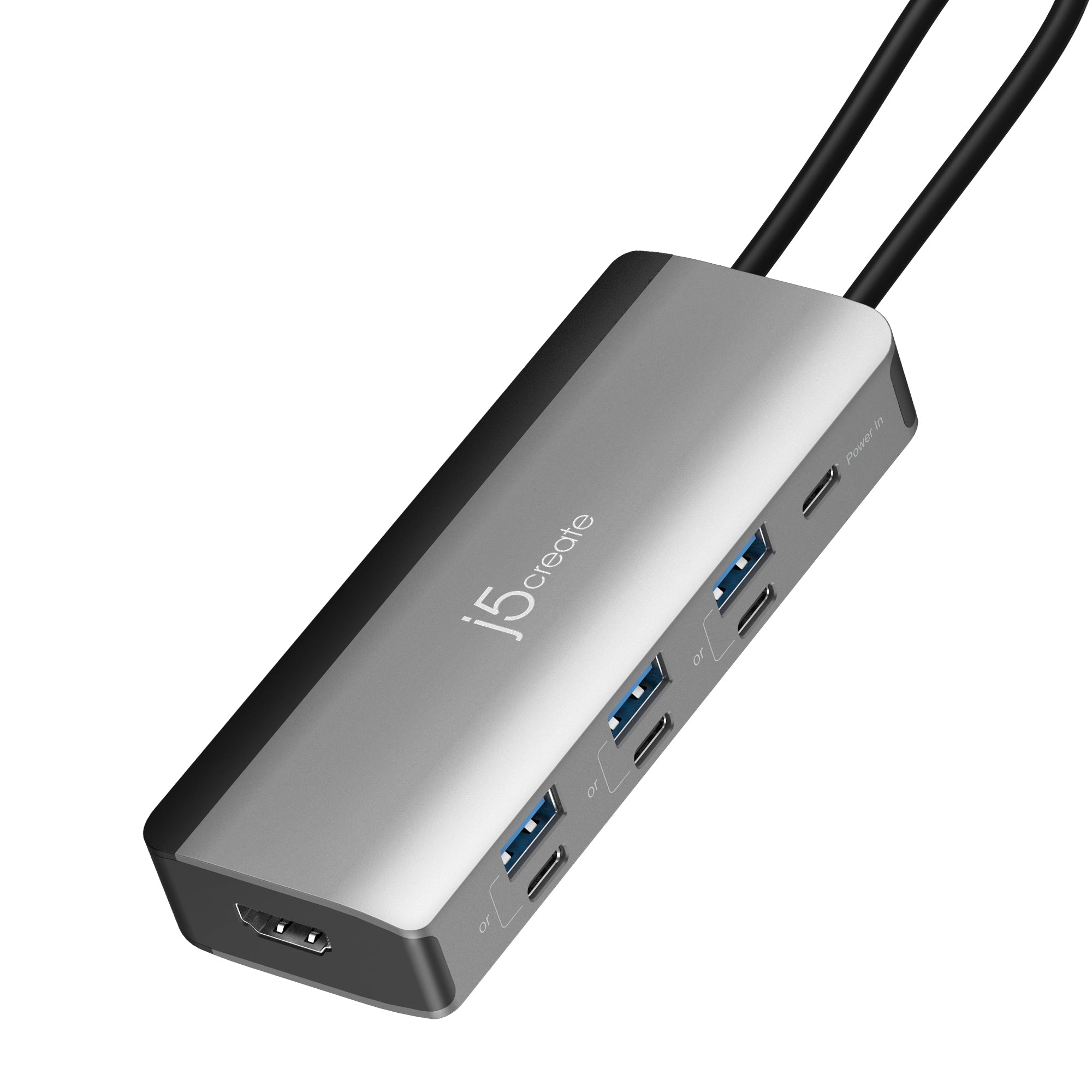

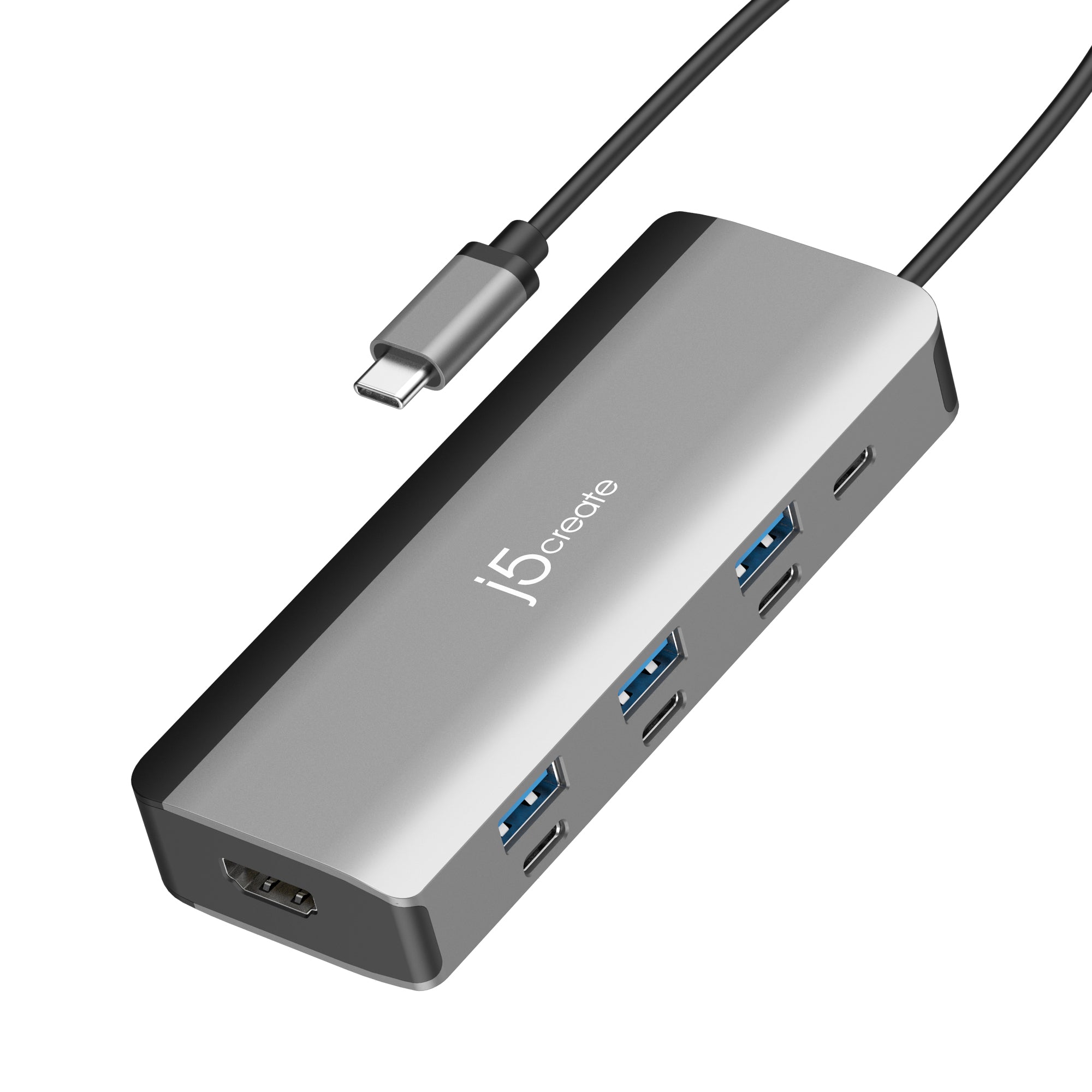

 Title image of the product

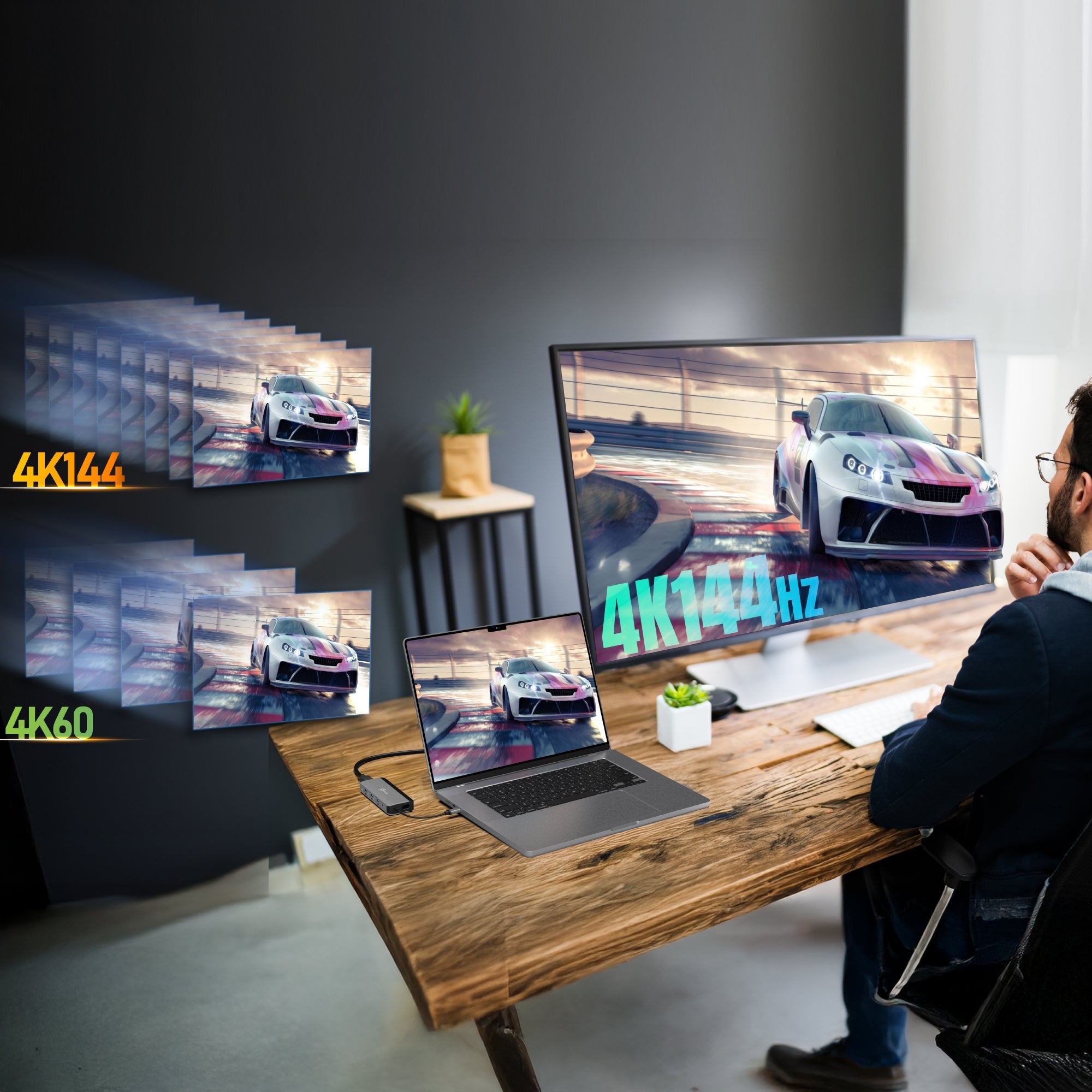

Stunning 4K Clarity at 144Hz

Enjoy ultra-smooth visuals with razor-sharp detail.

Image showing someone viewing a video of a car driving in 4K resolution at 144Hz while using the device

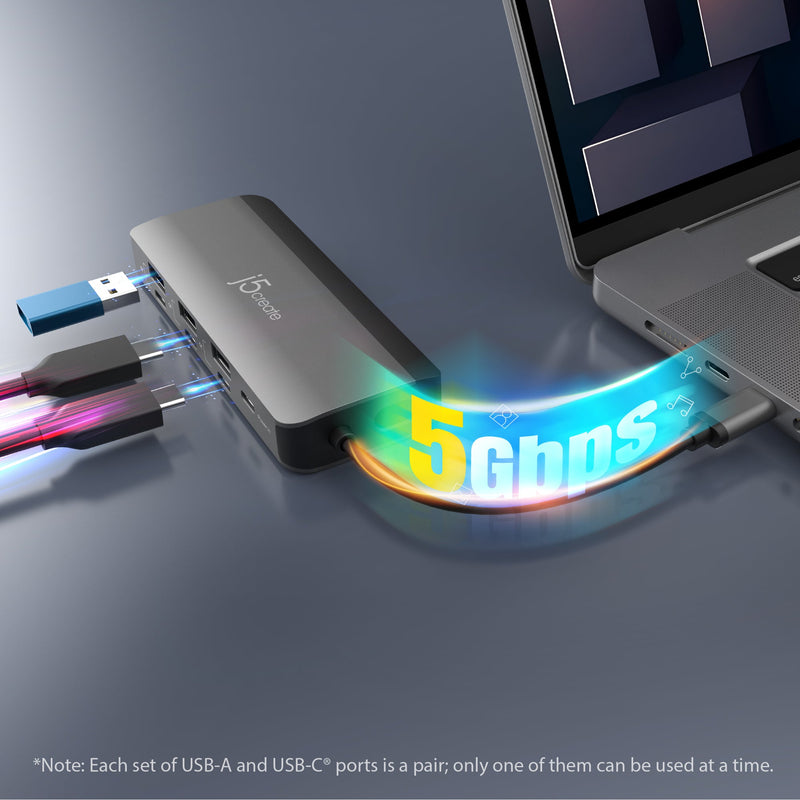

Versatile USB™ 3.2 Expansion

Equipped with 6 USB™ 3.2 ports (3 USB-A & 3 USB-C™), you can seamlessly connect your peripherals at speeds up to 5Gbps.
Experience smarter workflows with the JCD362.

Image showing that the device has six USB ports that can connect your peripherals with 5 Gigabytes per second of speed. There is also a note mentioning that 'Each set of USB ports is a pair; only one can be used at a time'

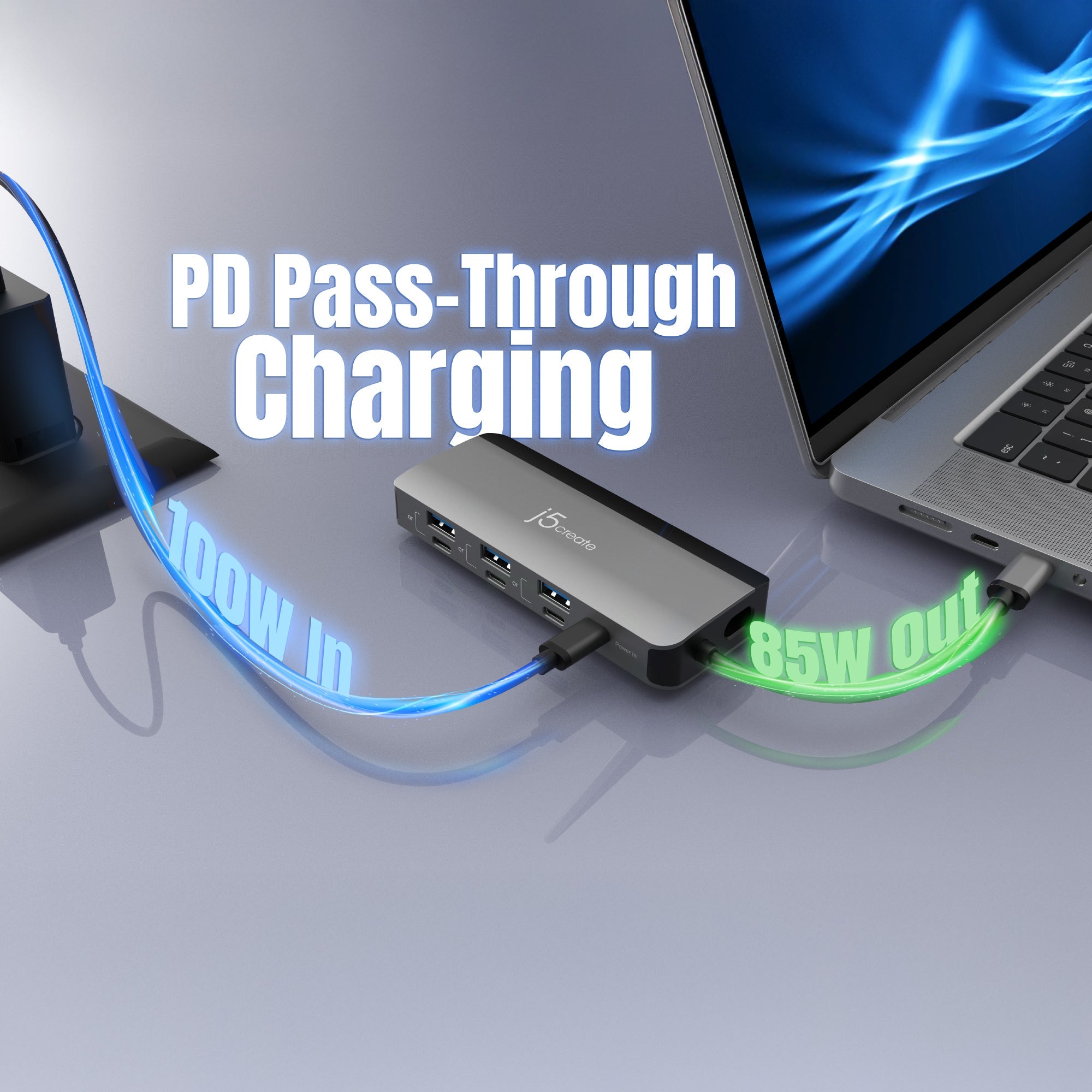

Power Delivery & Fast Charging

Compatible with USB-C® Power Delivery to provide high-speed pass-through charging to your laptop at up to 85W.

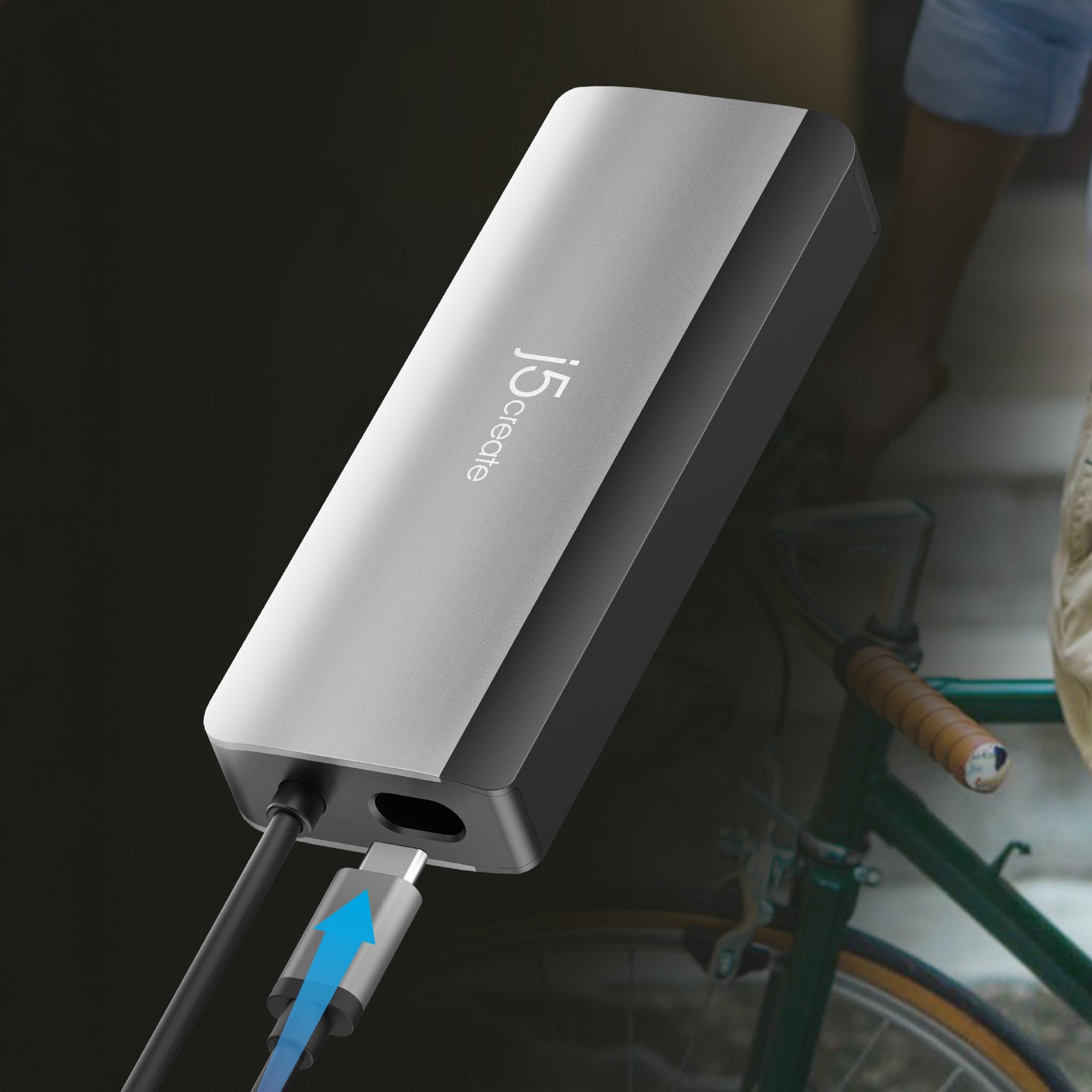

Image showing that the device allows fast charging, up to 85W output

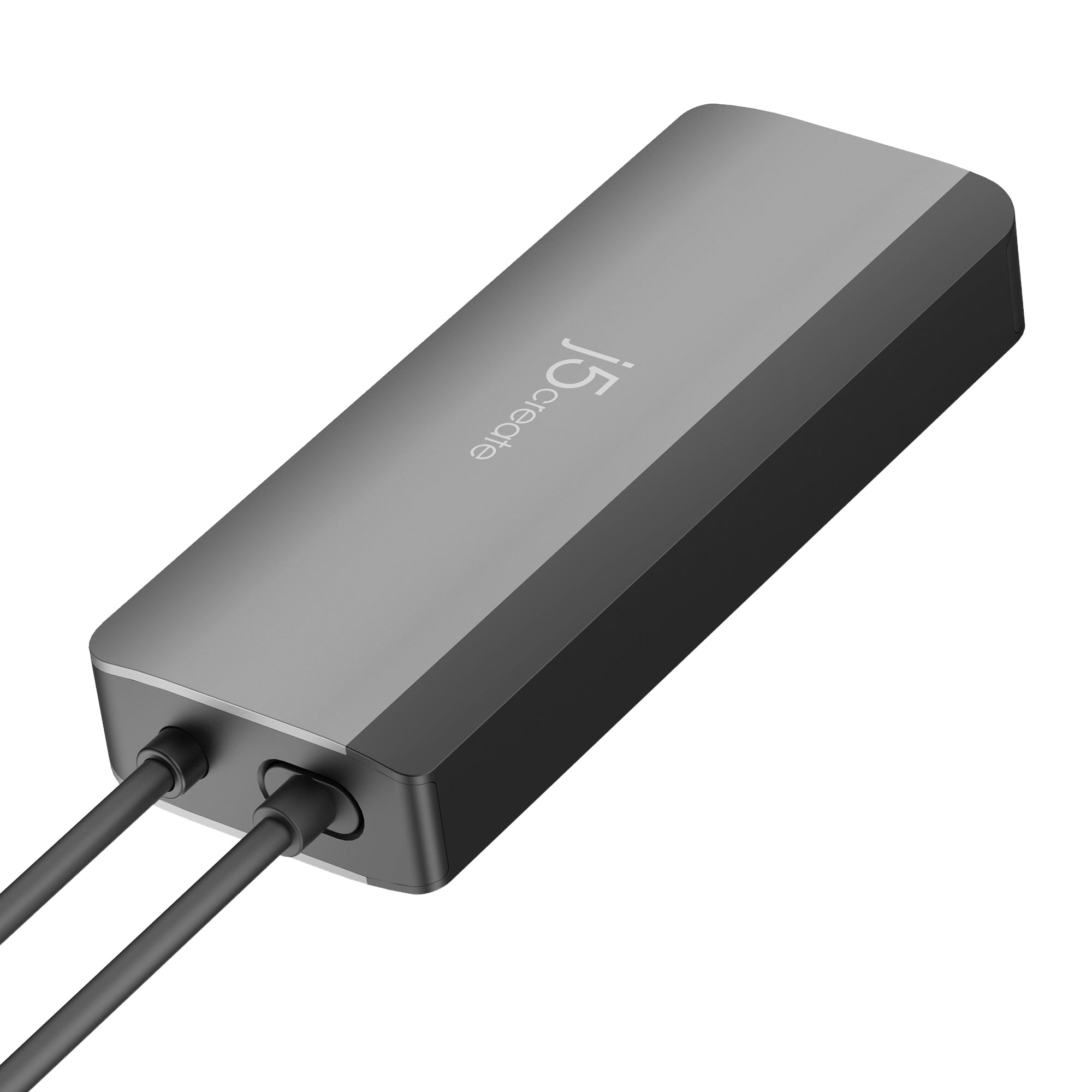

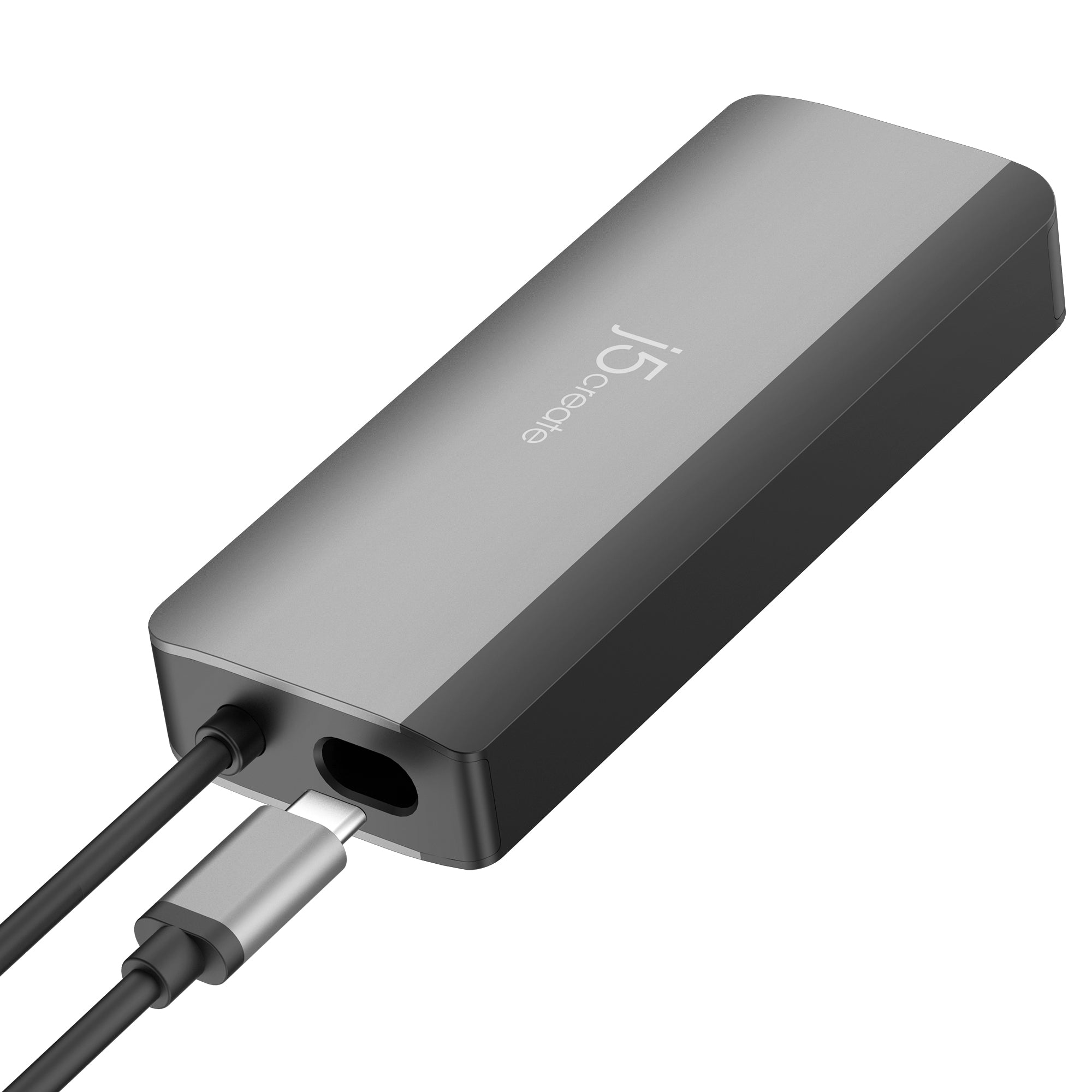

Integrated Cable Management

The thoughtfully designed cable slot helps keep the wire neatly tucked away, giving you effortless portability for your daily journey.

Image showcasing that the cable of the product can be tucked into the device in a loop, allowing it to wrap around a bag strap

Tiny But Mighty

Compact enough to fit in your daypack, yet powerful enough to support your entire setup on the go.

Image showcasing that the product is compact and good for travel

Universal Compatibility

Plug and Play. Compatible with USB-C® devices such as smartphones, tablets, and laptops that support DisplayPort™ Alt Mode over USB-C®.

Image showing devices compatible with the product

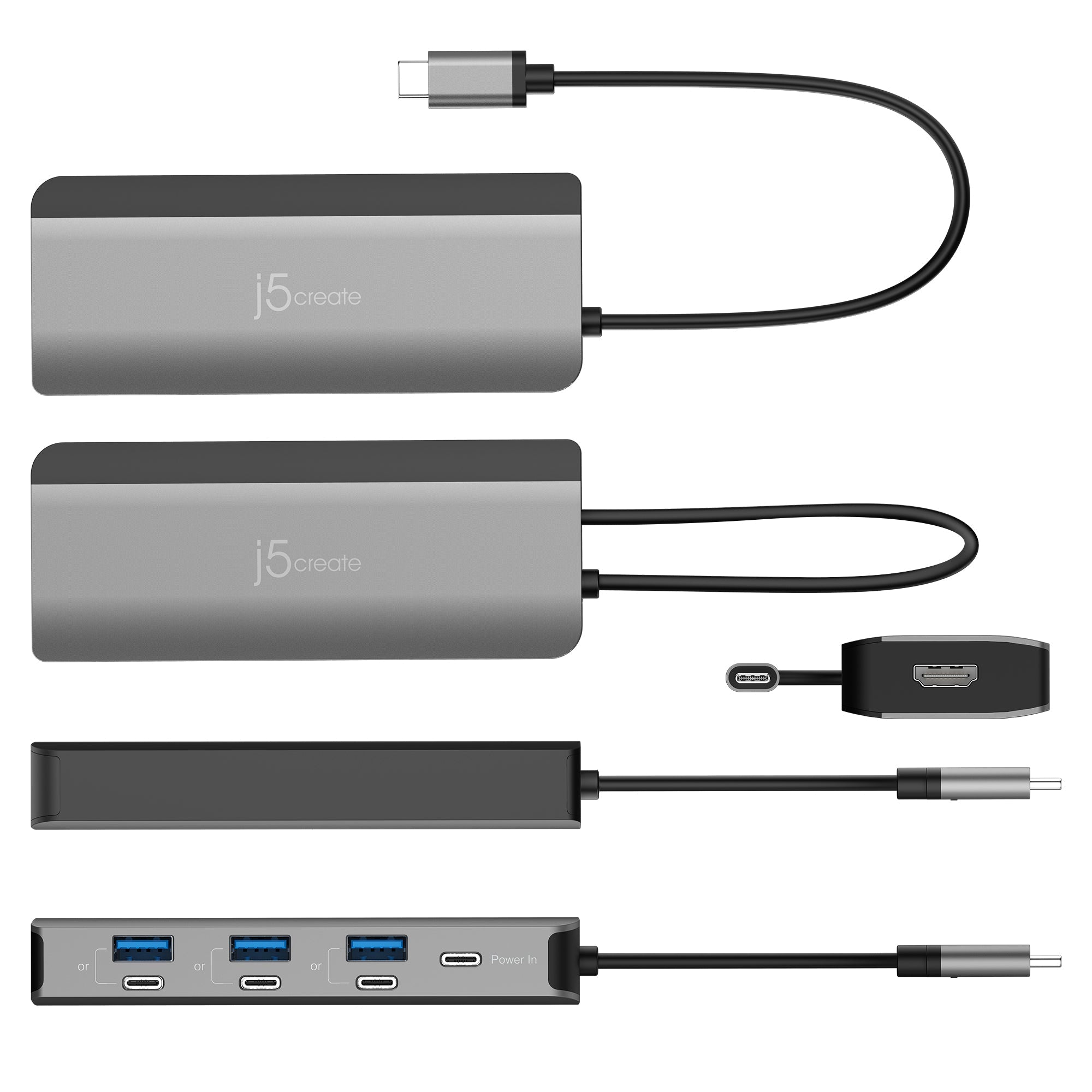

Physical Specifications

Dimensions of the product
  • Supports resolutions up to 4K @ 144 Hz
  • Provides three USB™ Type-A ports and three USB-C® ports; only one type (USB-C® or Type-A) can be used per pair
  • Supports up to PD 100W power in
  • Plug-and-play, no driver installation required
    • Note: Each pair of USB™ Type-A and USB-C® ports can only be used one at a time
Hardware
audio supported
Yes
host connector

1x USB-C® Male (PD 3.0 100W)

ports

1x HDMI™ 4K @ 144 Hz

3x USB-C® 3.2 Gen 1 5Gbps

3x USB™ Type-A 3.2 Gen 1 5Gbps

1x USB-C® PD-in with PD 3.0 up to 100W

power source
Bus-powered or self-powered
video output

1x HDMI™ Female

warranty
2-year Limited
Performance
audio channel
2.1 via HDMI™
displays supported

1

max data transfer rate

5Gbps

max display resolution

3840 x 2160 @ 144 Hz

2560 x 1440 @ 144 Hz

1920 x 1080 @ 144 Hz

Mouse Specifications
Power
input current
Up to 5A
input voltage
Up to 20V
output current
Up to 4.25A
output voltage
Up to 20V
power consumption
≤ 400 mA
power delivery
Up to 100W via USB-C®
Physical Specifications
cable length
7.87 in. (200 mm)
color
Space Grey
enclosure type
Aluminum, ABS Plastic
operating humidity
< 85% non-condensing
operating temperature
30 to 116°F (-1 to 41°C)
product depth
1.85 in. (47 mm)
product height
0.74 in. (19 mm)
product weight
3.53 oz (100g)
product width
4.65 in. (118 mm)
storage humidity
< 85% non-condensing
storage temperature
0 to 155°F (-17 to 68°C)
Wireless Protocols
Package Contents
  • 1x Flexible Ports USB-C® 4K144 HDMI™ Hub - Slim 8 in 1 (JCD362)
  • 1x Quick Installation Guide (QIG)
System Requirements
  • Available DisplayPort™ Alt Mode over USB-C® port
  • USB™ Power Delivery 2.0/3.0 compatible for upstream charging
Special Notes
  • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
  • The dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power   through the connected device
  • If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port for optimal performance
  • Do not unplug the power supply during data transmission to avoid data transmission failure or data loss.
  • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time.
