JCD3002 USB-C® 4K60 Hub with PD and Screen-Off Control

DisplayPort™ Alt Mode Compatible
Model: JCD3002

USB-C® 4K60 Hub with PD and Screen-Off Control offers streamlined connectivity and smart power management in one compact device. Its HDMI™ interface supports stunning 4K resolution at 60Hz, delivering crisp visuals for professional and entertainment use.

Equipped with high-speed USB ports up to 5Gbps and a USB-C® charging port with Power Delivery 3.0, it ensures fast data transfer and efficient upstream charging. The plug-and-play design eliminates the need for drivers, making setup effortless.

A standout feature is the dedicated Screen-Off Control button, allowing instant display shutdown for energy savings and privacy. Ideal for modern workspaces, this hub combines performance, convenience, and control.



Please Contact Us For Availability


  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
 Title image of the product

6-in-1 Expansion

Features a 4K60 HDMI™ for seamless multitasking and gaming, plus dual USB-C® and dual USB-A 5Gbps ports, and a PD charging port.

Immerse Yourself In Stunning Visuals

Enjoy ultra-smooth visuals with 4K@60 resolution.

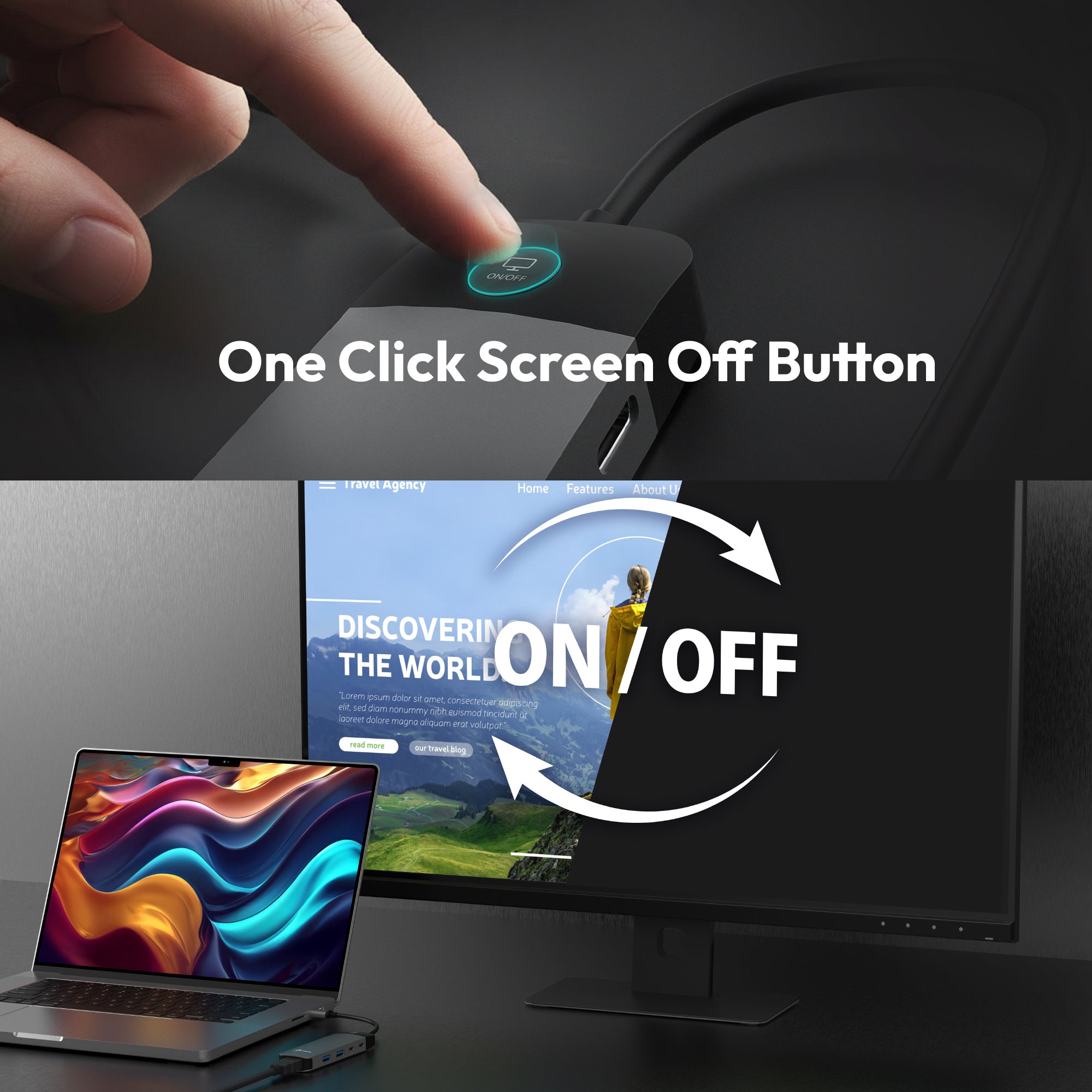

Equipped with Screen-Off Control Button

Comes with a Screen-Off Control button, allowing instant display shutdown for privacy.

5Gbps SuperSpeed Data Transfer

Equipped with high-speed USB ports up to 5Gbps, transfer large files in seconds.

Fast Pass-Through Charging

Compatible with USB-C® Power Delivery to provide high-speed pass-through charging to your laptop at up to 100W.

Tiny and Compact

Your perfect travel companion—compact enough to fit in your pocket, powerful enough to support your entire setup on the go.

Universal Compatibility

Plug and play; no driver installation required. Supports laptops with DisplayPort™ Alt Mode over USB-C®.

Physical Specifications

Image showing the physical specifications of the product
  • A sleek 4K60 HDMI™ interface with one-touch screen off functionality for instant power saving
  • Supports HDMI™ resolutions up to 4K 60
  • USB ports transfer rates up to 5 Gbps
  • USB-C® charging port supports upstream charging & power delivery 3.0
  • Comes with a Screen-Off Control button, allowing instant display shutdown for privacy
  • Plug-and-play, no driver installation required
Hardware
audio supported
N/A
host connector

1x USB-C® Male

network interface
N/A
ports

1x HDMI™ 4K @ 60 Hz

2x USB-C® 3.2 5Gbps

2x USB Type-A 3.2 5 Gbps

1x USB-C® PD 3.0 up to 100W

power source
Bus-powered
video output

1x HDMI™ Female

warranty
2-year Limited
Performance
audio channel
2.1 via HDMI™
compatible networks
N/A
displays supported

1

max data transfer rate

5 Gbps

max display refresh rate

60 Hz

max display resolution

3840 x 2160

Mouse Specifications
Power
power consumption
≤ 500 mA
power delivery
Up to 100W
Physical Specifications
cable length
3.94 in. (100 mm)
color
Space Grey
enclosure type
Aluminum, ABS Plastic
operating humidity
< 85% non-condensing
operating temperature
30 to 106°F (-1 to 41°C)
product depth
0.59 in (15 mm)
product height
4.53 in (115 mm)
product weight
1.69 oz (51g)
product width
1.33 in (34 mm)
storage humidity
< 85% non-condensing
storage temperature
0 to 155°F (-17 to 68°C)
Wireless Protocols
Package Contents

1x JCD3002 USB-C® 4K60 Hub with PD and Screen-Off Control

1x Quick Installation Guide

System Requirements
  • Available USB-C® port that supports DisplayPort™ alt mode. Please refer to the manufacturer of your hardware for more information on your device
Special Notes
  • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
